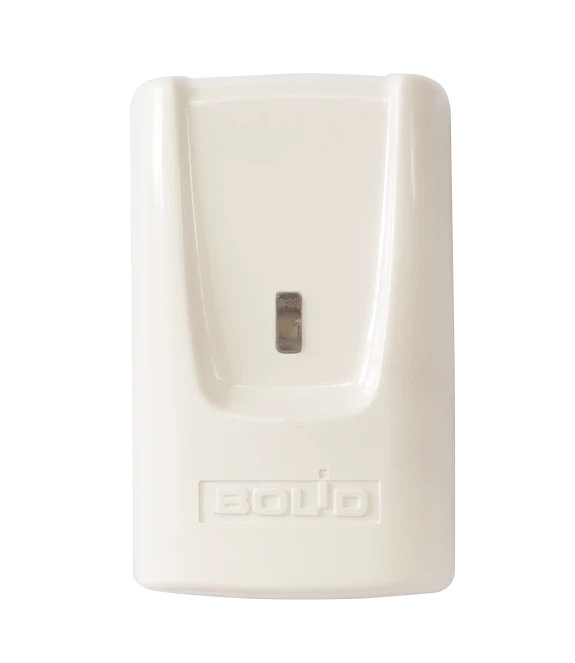

Available for ImportVibration Security Detector "Vulkan" for Effective Wall Protection
Manufacturer:BOLID CJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed to detect an attempt of deliberate destruction (burglary) of concrete walls and floors at least 0.12 m thick, brick walls at least 0.15 m thick, wooden structures with material thickness from 20 to 40 mm, plywood at least 4 mm thick, chipboard structures at least 15 mm thick, standard metal safes, cabinets, doors and ATMs with the subsequent issuance of an alarm notification to the monitoring station or PKK by opening the alarm loop contacts of the executive relay.
Specifications
Power supply voltage
6 to 17 V
Average current consumption
8 mA
Sensitivity
0.03
Maximum detectable vibration frequency
3200
Protected surface area (solid concrete, reinforced concrete, brick structure)
up to 30
Protected surface area (wooden structure)
up to 12
Protected surface area (metal cabinet, door, upper cabinet of ATM)
up to 6
Protected surface area (safe, bottom cabinet of ATM)
Up to 3
Detectable tilt angle
5 and more grads
Protection degree of the shell according to GOST 14254-2015
IP30
Operating temperature range
-20 to +50 °?
Overall dimensions of the device
68x42x19,5
Instrument weight
max. 0.05 kg
Average lifetime of the device
10 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
