Voltage Converter PН4-70-48 for DC Voltage Reduction Available for Import

Voltage Converter PН4-70-48 for Efficient DC Voltage Reduction

Static Power Converters
Manufacturer: SIBKONTAKT LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

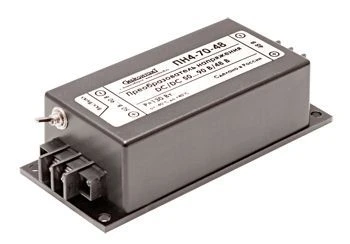

The PN4-70-48 voltage converter (converter) is designed to reduce DC voltage. The converter converts a constant voltage of 50-90V into a constant stabilised voltage of 48V. It has galvanic isolation between input and output, between input and housing, between output and housing.PN4-70-48 is realised on the principle of high-frequency pulse voltage conversion. It is possible to connect to the converter any 48-volt electrical equipment from the input DC voltage of 50-90 V.

Specifications

Breakdown protection (three stages)
Armoured glass
Input fuse
Armoured glass
Thermal protection
Armoured glass
Input-output galvanic isolation
Armoured glass
Output overload protection
Armoured glass
Output short-circuit protection
Armoured glass
Operating temperature range
-40...40 °C
Efficiency factor
93 %
Long-term load power
130 W
Rated output current
2.7 A
Input voltage operating range
50...90 V
Nominal input voltage
70 V
Parallel work
Armoured glass
Output voltage
48 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
