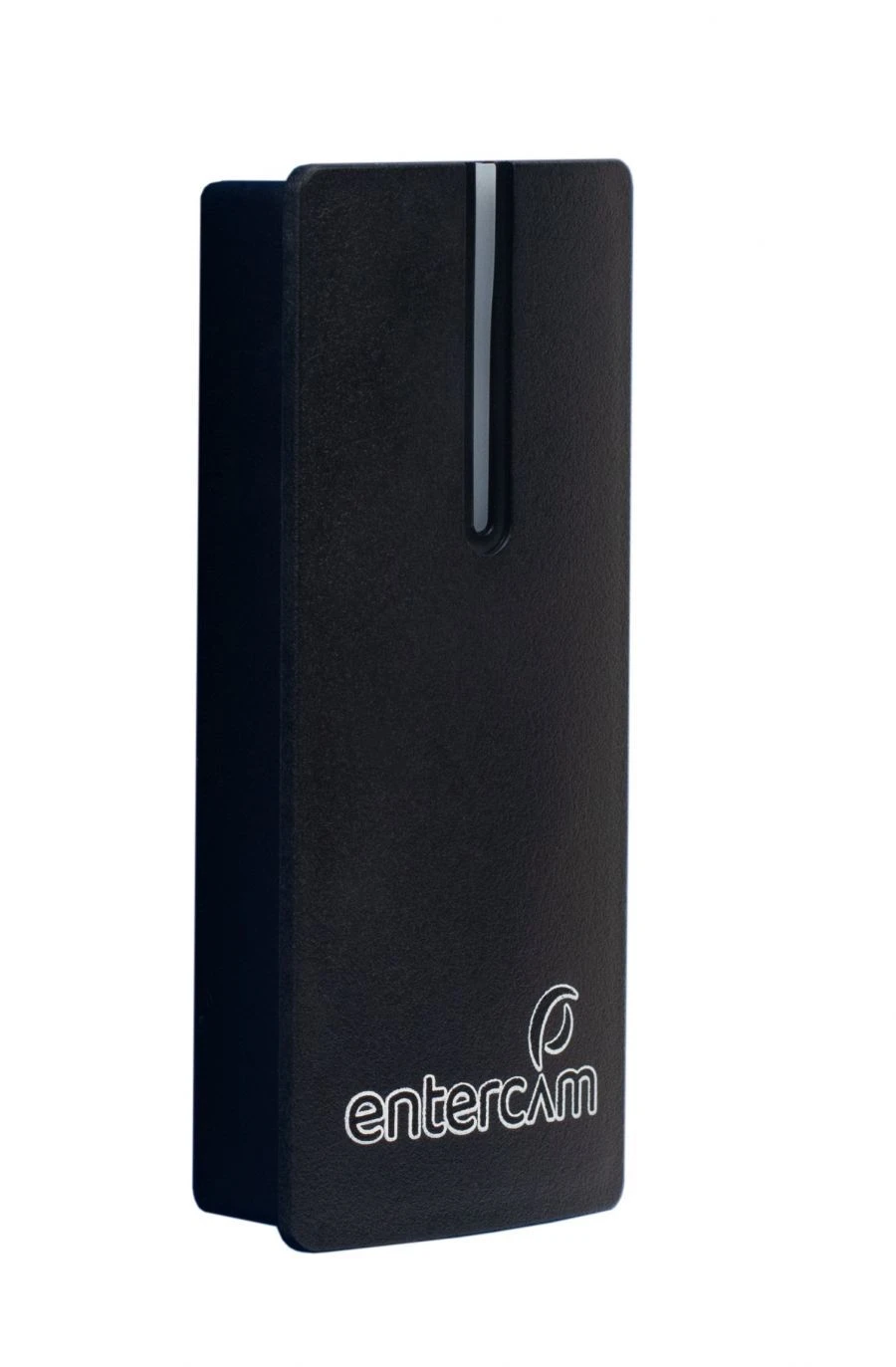

Wall-mounted RFID Reader for Wiegand Protocol by ENTERCAM - Ideal for Access Control

Wall readers ENTERCAM can be used to transmit information on any type of Wiegand from 26 to 54, as well as 1Wire (format used in intercoms). The wall readers are configured using a master card. The master card must be used in conjunction with an ENTERCAM desktop reader and the driver from the official website.

The wall readers can work in secure modes with Smarttag, Mifare, Infineon cards. AES encryption is used when transmitting data over a secure channel. 110 x 48 x 20 mm, weight 105 gr.

Power supply: 9÷16V DC, 30mA Reading range: Up to 10 cm Reading speed: 0.1 sec Communication interface: Wiegand 24 ... 58 and 1WIRE Indication: Light and sound Protection class: IP68 Operating temperatures: -45oC ÷+60oC Operating humidity: up to 100%.
