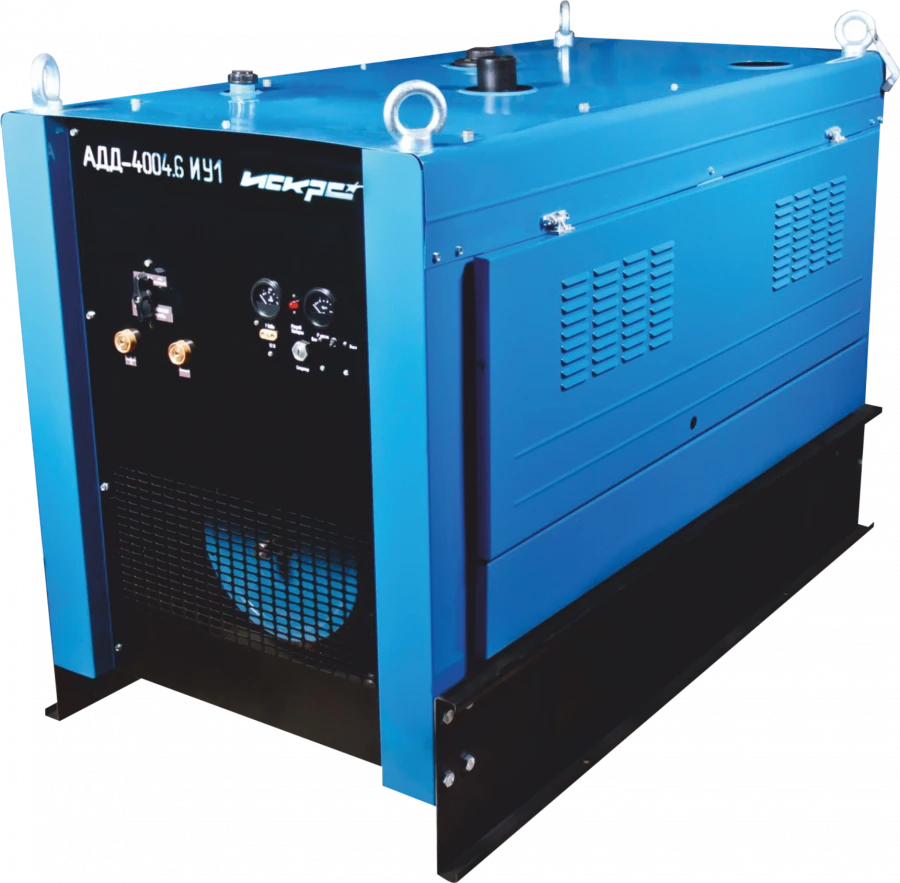

Welding Generator ADD-4004.6 VG and U1 Sever

Available for Import

ADD-4004.6 VG and U1 Sever Welding Generator for Manual Arc Welding Applications

Electric Soldering & Welding Machines

Manufacturer: UZSNGU "ISKRA" LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Welding machine ADDD - 4004.6 VG I U1 Welding machine ADD - 4004.6 I U1 North

Description

A welding unit ADD-4004.6 VG I U1 North is designed to supply one welding station for manual arc welding, cutting and surfacing of metals with direct current. Additionally it has an auxiliary generator, bandage and flow heaters. It has a high level of productivity and is an optimal option for work in the field.

The unit allows welding with electrodes with any type of coating, as the power supply is carried out from a source of direct current, which is an inductor-type generator with rectification of current, efficiency of 70%. The rated parameters of the unit refer to its operation at an altitude of not more than 1000m above sea level, ambient air temperature from +40°C to -45°C and relative air humidity (monthly average) up to 80% at +15°C. The flow heater is designed for automatic heating of fuel in the fuel line when the engine is running.

It has an electronic control circuit that automatically switches on the heater...

Specifications

Engine cooling

Closed type with forced coolant circulation

Summer fuel

?-0,2-40

Rated welding current

400 A

Rated operating voltage

NZ-150-14,5 V

Welding current control limits

60...430 A

No-load voltages, max.

Flat grinder, Specialised grinder V

Nominal welding cycle time

Load duration, PU

60 %

Engine model

?-242

Motor power

6 kW

Rotational speed

1800

Winter fuel

Z-0.2 minus 35

Hourly fuel consumption of the engine in nominal operation mode, not more than

0.00142

Fuel tank capacity

60 l

Length

1800 mm

Width

920 mm

Height

1150 mm

Rated power of the alternator

AC frequency

SBVVBG

Rated voltage of the alternator

230 V

Rotational speed of the alternator

3000

Unit weight without accessories

901

Supply voltage of the bandage heater

B1/B8 2100/900 MHz V

Rated power of the bandage heater, not less than

120 W

Supply voltage of the flow heater

B1/B8 2100/900 MHz V

Rated capacity of the flow heater at diesel fuel temperature -20°C, not less than

220 W

Rated capacity of the flow heater at diesel fuel temperature +5°C, not less than

180 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
