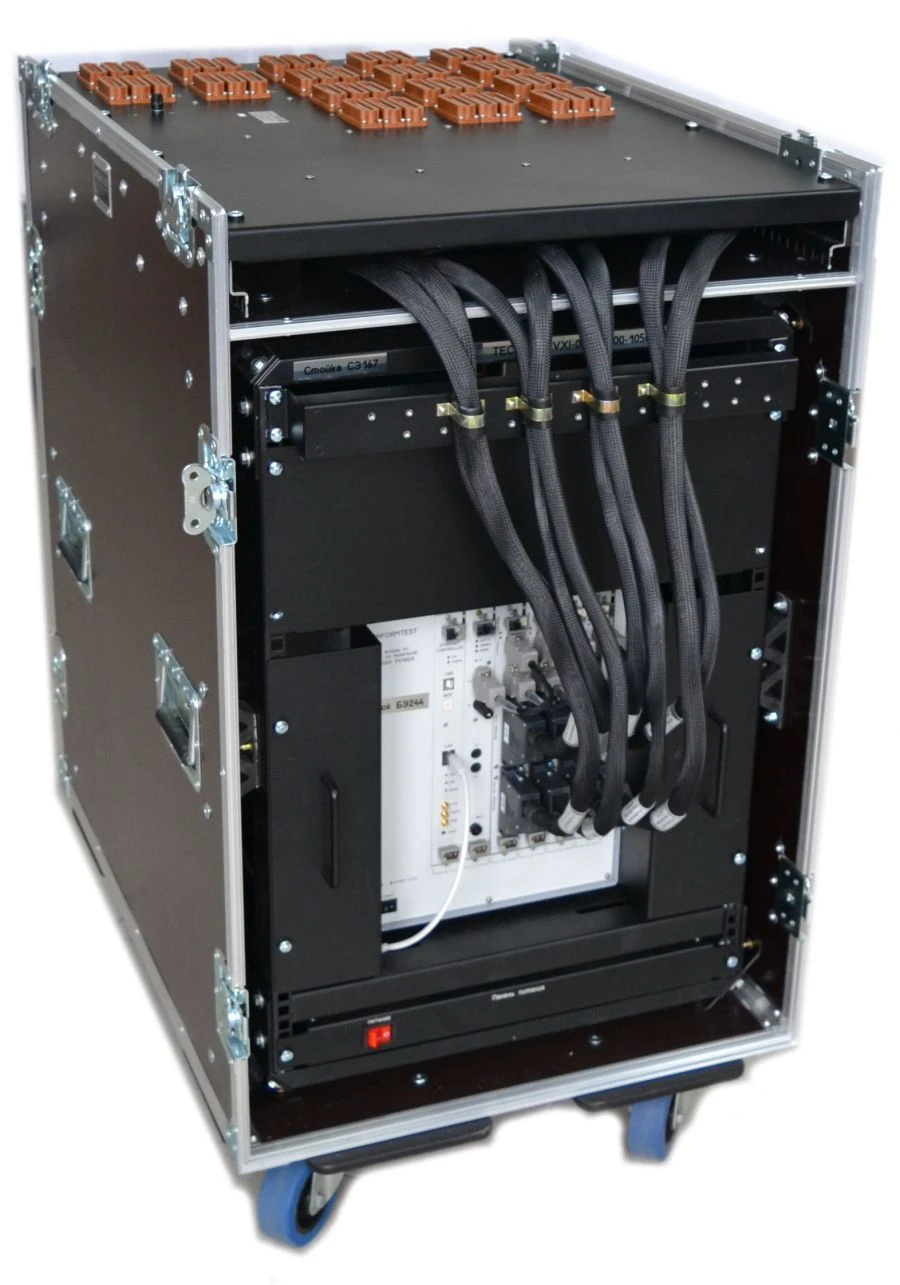

Wire Installation Tester TESt-9110-VXI for Automated Quality Assurance

Electrical Measurement Systems

Manufacturer:VXI-SYSTEMS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The TEST-9110-VXI wiring tester is a modular system for automated quality testing of harnesses and wiring. The system is based on the open international
VXI standard
The system finds application in a wide range of production processes for controlling:
-cable networks of complex and critical objects
-unmounted printed circuit boards
-quality of assembly of electrical units before their first inclusion in critical systems
-quality of manufacturing of complex harnesses

Specifications

Name

Wiring tester TEST-9110-VXI

Measurement of RMS value of AC voltage with frequency 50 Hz

1...700

Measurement of DC electrical resistance using a four-wire circuit at a given sampling current of 100 mA

0.001...30 ohm

DC voltage measurement

±700 ?

Measurement of insulation resistance

1×10^5 to 1×10^9 ohms

Number of channels

Up to 200,000

DC Voltage Reproduction

1...1050 V

Reproduction of RMS value of AC voltage with frequency 50 Hz

100...750 V

Reproduction of DC current, mA

5...2000
