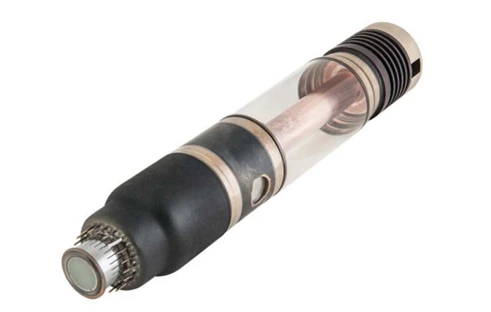

X-Ray Tube with Photocathode (FRT) for Enhanced Imaging Applications

Medical X-ray Accessories

Manufacturer:Electron OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Cold cathode X-ray tube (CCXRT) uses an inbuilt photomultiplier tube as a source of electrons to replace conventional cathodes.
The X-ray emission is controlled by the amount of light flux incident on the photocathode of the FRT. The light source can be an LED, laser, lamp or any other source.

Specifications

Rated voltage (without beryllium window)

3...40 kV

Anode current, mA

0.01...1

Length (without beryllium window)

220 mm

Signal to noise ratio at operating irradiance, times

Performance

<1·10^-7

Diameter (without beryllium window)

44 mm

Diameter (with beryllium window)

55 mm

Length (with beryllium window)

290 mm

Power (with beryllium window)

100 W

Power (without beryllium window)

40 W

Rated voltage (with beryllium window)

3...100 kV

Focus dimensions (with beryllium window)

1x2 mm

Focus size (without beryllium window)

0.8?1.2 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
