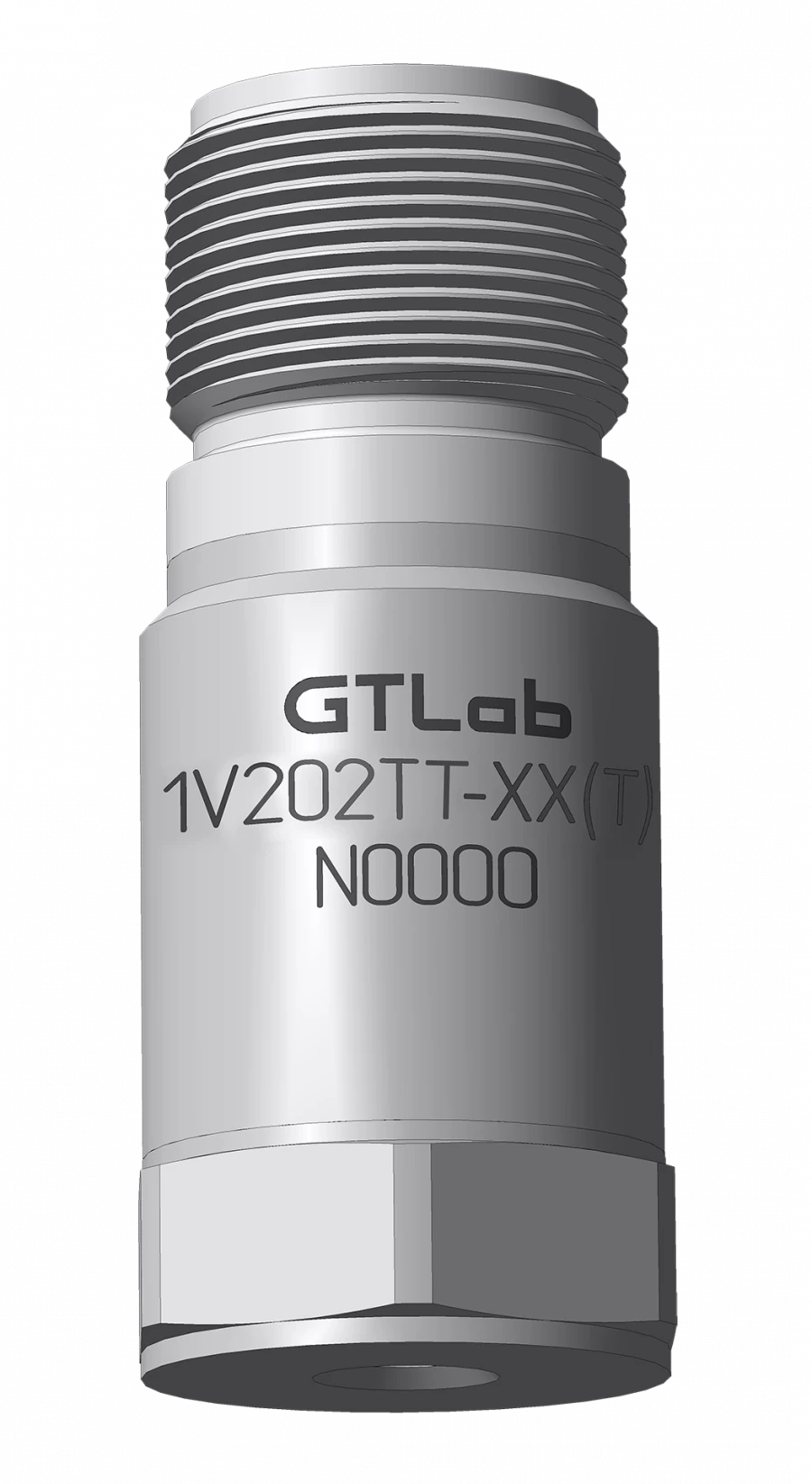

???????????? 1V202TT-30(T)

Movement Measurement Devices

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

High-Precision Voltage Output Accelerometer 1V202TT-10(T) ???????????? 1V202TT-100(T)

Description

Voltage output accelerometers are electromechanical transducers with increased noise immunity for measurement of vibration and shock accelerations. Industrial vibration acceleration transducers with voltage output are designed for monitoring the state of industrial equipment in conditions of strong industrial interference.

Specifications

Conversion factor

3 mV/(m-s-2)

Relative transverse conversion ratio

< 5 %

Maximum value of the measured acceleration amplitude

± 1600 m/s2

Maximum impact (peak value)

± 10,000 m/s2

Operating temperature range

-40 ... +125 °?

Operating frequency range: ? frequency response irregularity ± 3 dB ? frequency response irregularity ± 1 dB ? frequency respons

0.3 ... 12,000 Hz; 0.5 ... 10,000 Hz; 1 ... 7,000 Hz

Natural frequency in fixed state

> 30 kHz

Noise level, RMS (1 Hz ÷ 10 kHz)

< 0.002 m/s2

Output impedance

< 100 ohms

Power supply: voltage; current

+ (18 ... 30) V; 2 ... 20 mA

DC output voltage level

8 ... 13 ?

Housing material

stainless steel

Coefficient of influence of ambient temperature

± 0,2%/ °?

Time to establish operating mode

4 ?

Weight (without cable)

42 ?

Temperature conversion factor (±2 %)

10 mV/°C

DC output voltage level by temperature (at 0°C)

500 mV

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
