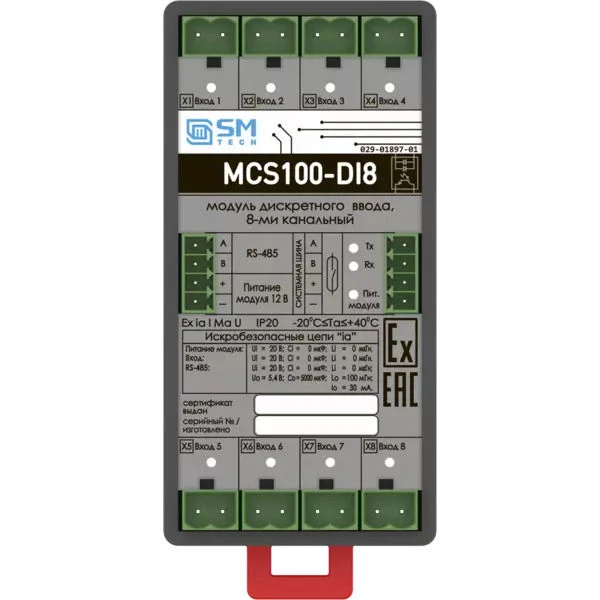

8-Channel Discrete Input Module MCS100-DI8 for Signal Processing

Digital Signal Converters

Manufacturer: SPBEX-MINING LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Digital input module, 8-channel MCS100-DI8 for receiving and processing the state of input potential signals.

Specifications

Weight

0.13 kg

Overall dimensions

122mmx55.5mmx32mm

Mounting the device

DIN rail: -type, width 35 mm, recommended height 7.5 mm/15 mm

A communication protocol used to transmit information

ModBus-RTU; ModBus-ASCII; internal

Communication interface

RS-485

Type of sensor to be connected

potential

Power consumption, max.

1 W

Rated supply voltage

B1/B8 2100/900 MHz V

Protection class against electric shock

III

Degree of protection against external influences

IP20

Operating temperature

-20...40 °C

Explosion protection marking

Ex ia I Ma U*

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
