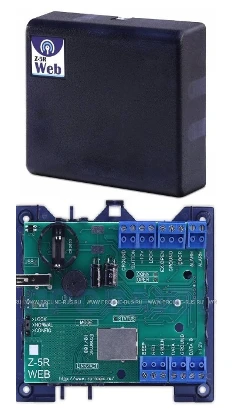

Access Control System IP Controller Z-5R (Web Model)

Available for Import

Access Control System IP Controller Z-5R for Efficient Access Management

Low-Voltage Electrical Panels

Manufacturer: OTK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for use in access control and management systems (ACS), and provides control of a single access point (access point).Controller supports operation in standalone and network mode. Filling of key banks in standalone mode is carried out with the help of a master key. In network mode the controller operation and filling of key banks is carried out over the network with the help of external control programme.

In addition to card entry in the network mode you can read events, set the current time in the controller and configure time zones for each card pass. To realise the network mode of operation, the controller provides the possibility to connect to the local network via Ethernet or Wi-Fi, as well as via 3G or 4G USB modem. In case of loss of connection with the control programme in the network mode, the controller continues to work autonomously, accumulating events in the event buffer.

Specifications

Key memory

2 cans of 8168 each

Event Memory

8192 pcs

Number of connected readers

Reader protocols

Wiegand (26-50) and iButton

Control of reader indication

Got it

Power protection for readers

200 mA

Power output current

5 A

ALARM signal output

50V, 100mA, 35? switching; 1.5kV isolation

Thumper

Optical

Ethernet interface

RJ45 (10/100BASE -T) Auto MDI/MDIX

Compatibility

Ethernet II and IEEE 802.3

Protocols

IP, ARP, TCP, SSH, ICMP, UDP, DHCP, HTTP

Wi-Fi Standards

IEEE 802.11 b/g/n

Frequency range

2.4...2.4835

Transmission speed, Mbps

11n to 150, 11g to 54, 11b to 11

Wireless signal strength

<20dBm (<100mW)

Modes of operation

Access point, client

Wireless network security

64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Dimensions

105x116x38 mm

Mounting

Wall or DIN rail (TH35)

Power supply voltage

8...24 V

Current consumption (at 12V DC)

Up to 300 mA

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
