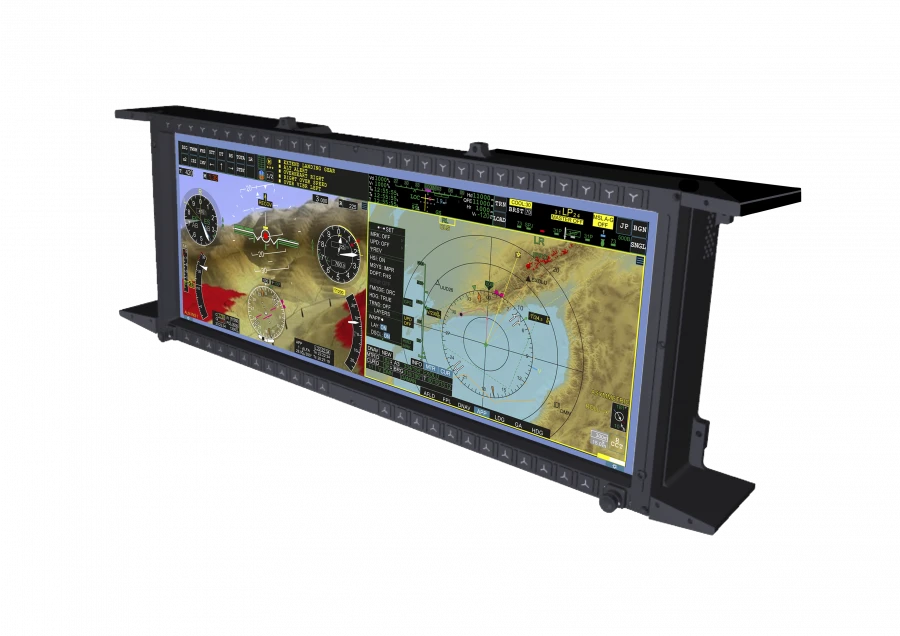

Advanced Panoramic Aviation Indicator PAI for Enhanced Flight Monitoring

Two halves of the image from processors, as well as superimposition on the functional graphics of the TV image received on FC-AV channels is made in a separate module of 6U format based on FPGA

MFI works under the control of two independent microprocessors "Elbrus-1C+" with the frequency not less than 800 MHz with the built-in graphic accelerator of high performance. Each of the processors performs construction of graphic image of 1600×12 format

The screen has a contrasting anti-reflection coating with a specular reflection coefficient of less than 1 per cent.

Not less than 16 mln.

Backlighting can be adjusted independently for left and right half of the image. Independent adjustment of 1/4 screen width windows is an option

The brightness of white image in "Day" mode is from 6 to 1000 cd/m2; in "Night" mode - from 6 to 1000 cd/m2.

MFI is made on the basis of the colour active-matrix liquid crystal screen with the size of the working field 609×228 mm with the resolution of 3200×1200 pixels. Taking into account the partial overlapping of the keyboard panel the size of the MFI working
