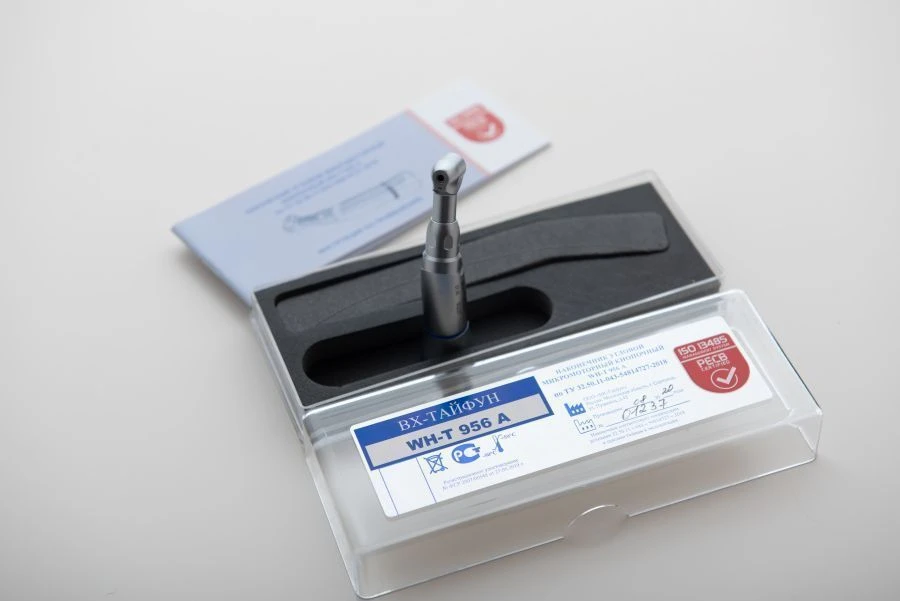

Angular Micro-Motor Push Button Handpiece WH-T 956 A for Dental Use

Dental Tools and Devices

Manufacturer: VX-TAIFUN LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The WH-T 956 A micro-motor push-button corner tip is designed for fixing dental instruments (burs, cutters, polishers, etc.) with a shank diameter of 2, 35 mm and transferring rotation from the micro-motor to them. It allows you to work in hard-to-reach areas of the mouth when cleaning teeth, preparing teeth for fillings or crowns (bridges). It is a reusable product. It is intended for therapeutic and orthopaedic operations. The design of the handpiece provides safe and reliable operation, as well as easy assembly and disassembly for maintenance and repair.

Specifications

The blue coloured ring indicates that the handpiece has a transmission ratio of 1:1.

1:1

Tip length, mm

82 ± 1 mm

Head height, mm

14,3 ± 0,1

Sterilisation in steam autoclave at temperature (134±1)°C and pressure (0,21±0,01) MPa for 5 min.

Lubrication with KAVO Spray service oil or other similar service oil by spraying 5 - 6 drops of oil or spray.

5-6

Tip weight, kg, not more

0,06 kg

Adjusted sound power level, dB-A, not more than

Water consumption for tool cooling at 0.2 MPa (2 kgf/cm2), ml/min.

75 ± 25

Transferable torque, N-m (kgf-cm), not less than

0,06 (0,6)

Frequency of rotation at the tip inlet, s-1 (rpm), not more than

667 (40000)
