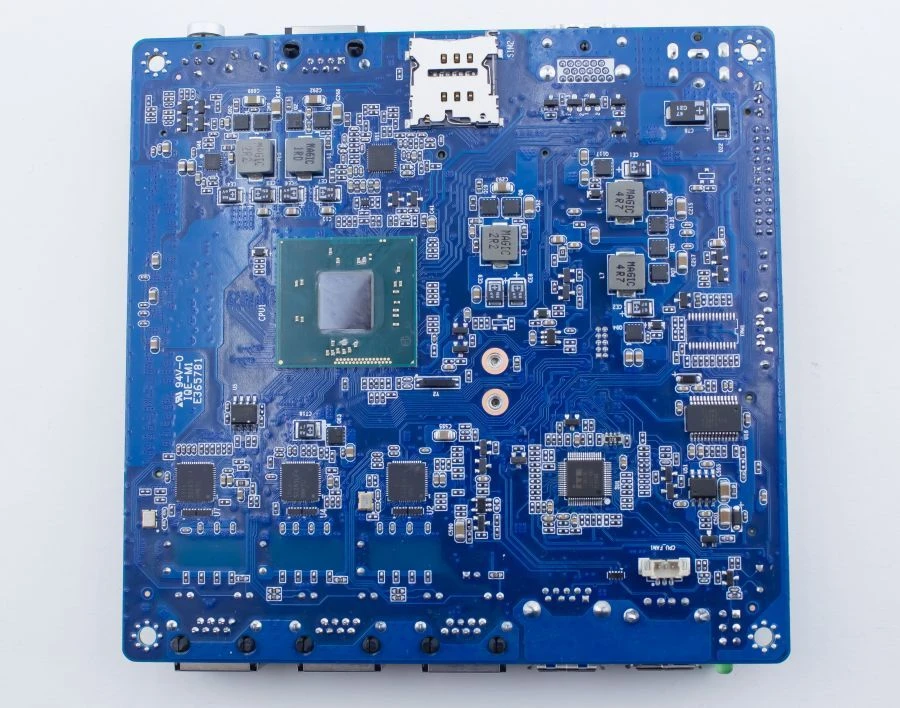

Automatic Data Processing Module ATOM-BMG for Mobile Communication Applications
Manufacturer:
ATB Electronics LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Automatic data processing device designed for operation in mobile communication networks, specially designed for optional installation of 4G/5G modems and having interface pinout for modems, sim-card and external antennas. Ready for installation in information infrastructure, chassis, enclosures, or functioning in an unencapsulated version, made in the form of a complete module containing: motherboard with soldered elements, Intel Atom microprocessor, memory card slots, SSD/HDD and RAM slot, audio-video codecs with HDMI port; installed on the board: Power on buttons, power control buttons, I/O communication ports, optional communication modules; "Atom Basic I/O System" software loaded into the BIOS chip; other technical means allowing to perform software loading, data acquisition and processing, control the device and other devices and networks connected to it
Specifications
Processor
Integrated Intel Atom E3845 - 4 cores, 2 MB L2 cache, 1.91 GHz
Number of processor cores
4 pcs
Processor cache
2
CPU clock frequency
1.91
Console port
RS-232C (RJ-45)
USB interface
USB 2.0, USB 3.0, internal on miniPCIe
Video adapter
Integrated Intel HD Graphics; 1-2 x HDMI port (ver. 1.4, 1080P, 60 Hz)
Expansion slot
1 x mini-PCI-e (PCIe, USB 2.0, SPI, SIM, I2C interfaces)
Power supply voltage
B1/B8 2100/900 MHz V
Power supply capacity
NZ-150-14,5 W
Operating temperature range
0...70 °C
Weight
200 year
Network interfaces
3 x 1G/100M Ethernet (RJ-45)
Network controller
Intel i226
Interfaces for connecting hard disks
SATA 3.0 (M.2 2242 slot); SATA 3.0 (7-pin connector)
USB interfaces
2 x USB 2.0, USB 3.0 - Type A connectors; 1 x USB 2.0 (PLS-5 connector); 1 x USB 2.0 (as part of mini PCI-e connector)
Specialized hardware and software
Software protection BIOS hardware Watchdog Timer with software controlled software-accessible platform serial number
Software
Basic system of input output ATOM (BIOS UEFI / LEGACY with preparation for OS installation
Memory card slots
availability
RAM slot
availability
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
