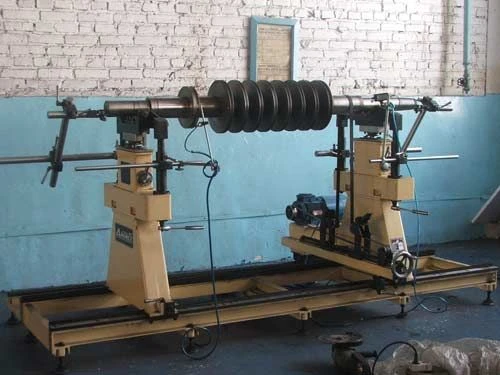

Balancing Machine VMV1000 for Balancing Auxiliary Equipment in Power Plants

Special Purpose Equipment

Manufacturer: DIAMEX 2000 LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

It is used for balancing of various auxiliary equipment of power plants, pumps, electric motors, at locomotive repair plants and depots for balancing armatures of traction motors, at metallurgical enterprises, chemical and petrochemical production, in aircraft engine building, at enterprises of gas and oil industry, etc. It has confirmed metrological characteristics, approved method of verification, are approved type of measuring instruments.

Specifications

Weight, not more

1000 kg

Voltage

380 V

Drive type

Belt transmission

Measuring range of vibration displacement amplitude, µm

0.1...100

Recommended speed range of the balanced rotor

150...1500

Weight of the intermediate support rotor min/max

10...1000 kg

Weight of cantilever rotor min/max

10...500 kg

Maximum load on the support

5500

Total length without base extension

3000 mm

Maximum diameter of the rotor above the bed with minimum diameter bearing journals

2000 mm

Support neck diameter

15...280 mm

Distance between the centres of the support necks

70...2700 mm

Diameter of the drive belt surface

40...1450 mm

For balancing of cantilever rotors

15...170 mm

For balancing rotors with narrow bearing journals and particularly light rotors

12...50 mm

Maximum rotor weight for balancing rotors with narrow bearing journals and extra light rotors

SBVVBG mm

Rotor support bearing diameter maximum for balancing rotors in their own bearings

310 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
