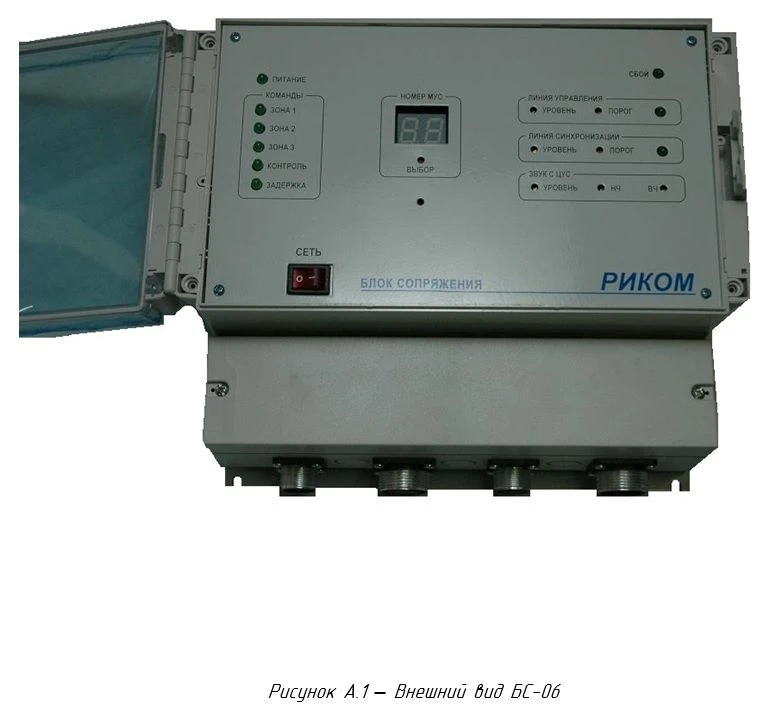

BS-06 Coupling Unit for Connecting Local Amplifier Equipment

The BS-06 interface unit is designed for interfacing the equipment of local amplifying stations (LAS) of the loudspeaker warning equipment (LSA) AGO RIKOM03, AGO RIKOM06, AGO RIKOM06-18 with the equipment of the central amplifying station (CUS) of CUS-82. BS-06 is installed at each ICC and provides continuous round-the-clock operation. BS-06 is intended for work in conditions of crossing premises of underground.

By its functional characteristics BS-06 replaces the interface device (PS) Xg2.157.000 TO. On resistance to influence of climatic factors during operation BS-06 corresponds to classification group K1 according to OST 32.146-2000, at working and limiting working temperatures from plus 1 to plus 40 0 C, without influence of dew and frost with subsequent thawing, without influence of moisture and splashes. In terms of resistance to mechanical effects BS-06 corresponds to classification group MS1 according to OST 32.146-2000.

The case BS-06 provides protection against penetration of dust and water jets according to the group...
