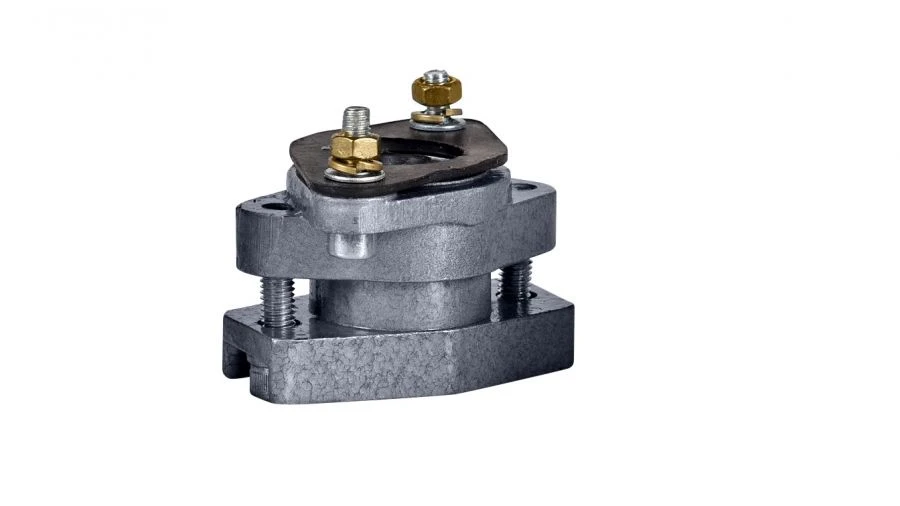

Cable Entry Type VK40-G1 1/2-1Ex e IIC Gb Available for Import

VK40-G1 Cable Entry for Flexible Armored Cables - Secure & Seal Applications

Cable Accessories
Manufacturer: VELAN OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Cable gland type VK40-PROM Cable gland type VK40-G1 1/2-PROM Cable gland type ??30-G1-1Ex e IIC Gb Cable gland type ??40-1Ex e IIC Gb Cable gland type ??25-G3/4-1Ex e IIC Gb

Description

Cable glands are designed for sealing and fixing flexible armoured and unarmoured cables with rubber or plastic insulation of round cross-section of pipe wiring when they are inserted into stationary, mobile or portable electrical equipment.

Specifications

Ambient temperature
-60...55 °C
Weight
0.2 kg
Degree of protection against external influences
IP66
Explosion protection marking
Ex tb IIIC Db;1Ex e IIC Gb
Cable outer diameter
22...38 mm
Female thread for external connection
G 1 1/2
Mounting holes of the surface-mounted inlet
Ø40 and 2 holes for M6
Length
40 mm
Cable entry material
Aluminum alloy
Climatic version
OM1;T1.5;B1.5
