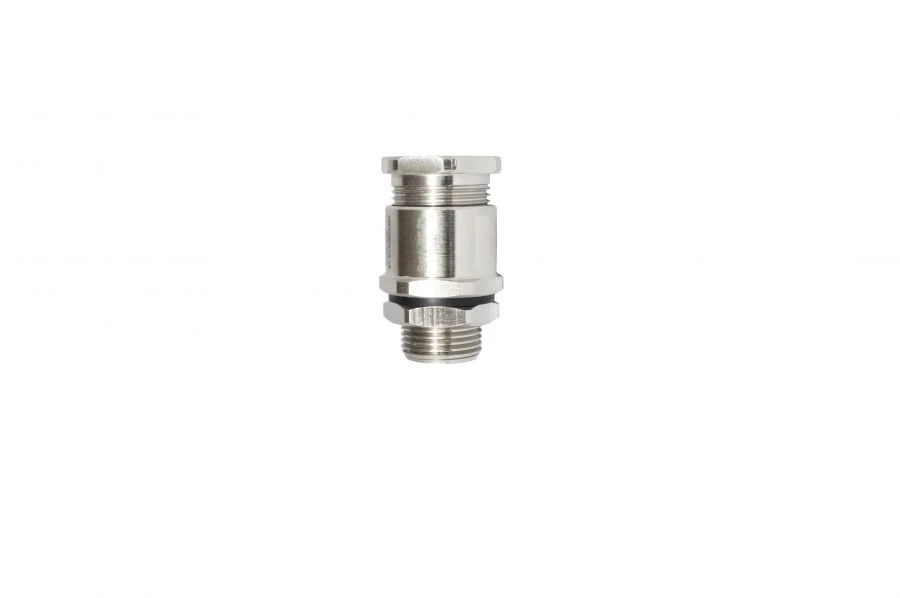

Cable Gland VK-X-VEL 5-M16-ExeG/ExdG-B1.5

Available for Import

Cable Gland VK-X-VEL 5-M16 for Sealing Flexible Cables

Cable Accessories

Manufacturer: VELAN OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Cable gland type VK-X-VEL 5-M20-V1,5-PROM Cable gland type VK-X-VEL 5-M40-V1,5-PROM Cable gland type ??-?-??? 5-?40-ExeG/ExdG-?1,5 Cable gland type VK-X-VEL 5-M50-V1,5-PROM Cable gland type ??-?-??? 5-?63-ExeG/ExdG-?1,5

Cable gland type ??-?-??? 5-?25-ExeG/ExdG-?1,5 Cable gland type VK-X-VEL 5-M16-V1,5-PROM Cable gland type ??-?-??? 5-?63-?1,5-???? Cable gland type VK-X-VEL 5-M25-V1,5-PROM Cable gland type VK-X-VEL 5-M20-ExeG/ExdG-V1,5 Cable gland type VK-X-VEL 5-M32-V1,5-PROM Cable gland type VK-X-VEL 5-M32-ExeG/ExdG-V1,5 Cable gland type ??-?-??? 5-?50-ExeG/ExdG-?1,5

Description

Cable glands are designed for sealing and fixing flexible unarmoured cables with rubber or plastic insulation of round cross-section when they are inserted into stationary, mobile or portable electrical equipment.

Specifications

Types of cable gland threads

R 3/8;K 3/8;G 3/8;M16x1,5

Length

42 mm

Cable entry material

anticorrosive coated steel; stainless steel; brass

Climatic version

OM1;B1.5

Ambient temperature

-60...55 °C

Weight

0.097 kg

Degree of protection against external influences

on special order IP67/IP68;IP66

Explosion protection marking

Ex tb IIIC Db;1Ex e IIC Gb/1Ex d IIC Gb

Cable outer diameter

3.1...8.7 mm
