Chisel Plow PCHM-4 for Effective Soil Processing and Crop Cultivation

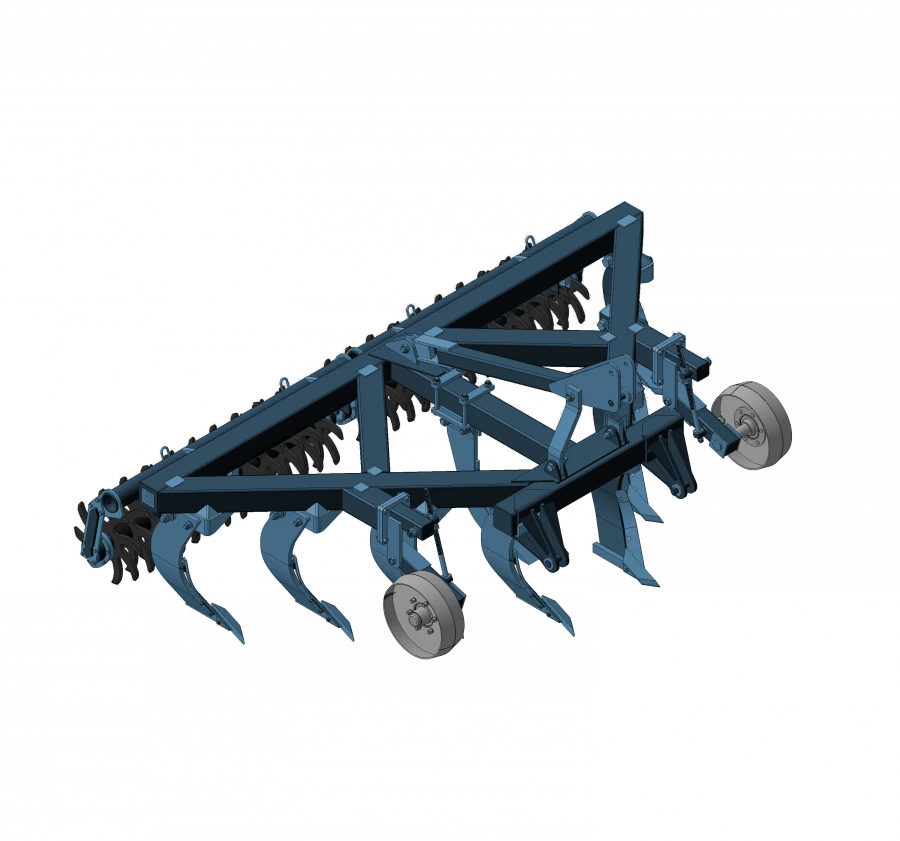

PchI-4 chisel plough is designed for basic no-tillage tillage of soils with specific resistance up to 0,12 MPa for grain and industrial crops, to a depth of up to 45 cm. Cheese plough can be used on mouldboard and no-tillage backgrounds for deepening and decompaction of arable horizon, improvement of meadows and pastures. Chisel plough PCM-4 is a mounted implement with symmetrically mounted working tools (right and left) for no-tillage loosening of soil and rollers for breaking and levelling the topsoil.

The working tool is a curved bent stand with a chisel in the lower part, with a breast attached in the front part. Chisel and breast of the stand are replaceable. For normal operation of the plough, the soil on the plot must fulfil the following requirements: <ul> <li>- soil moisture should be not more than 30%, hardness up to 40 kgf/sq.

cm.</li> <li>the length of plant residues on the surface must not exceed 250 mm.</li> <li>the slope of the field should be no more than 8%.</li> </ul>.
