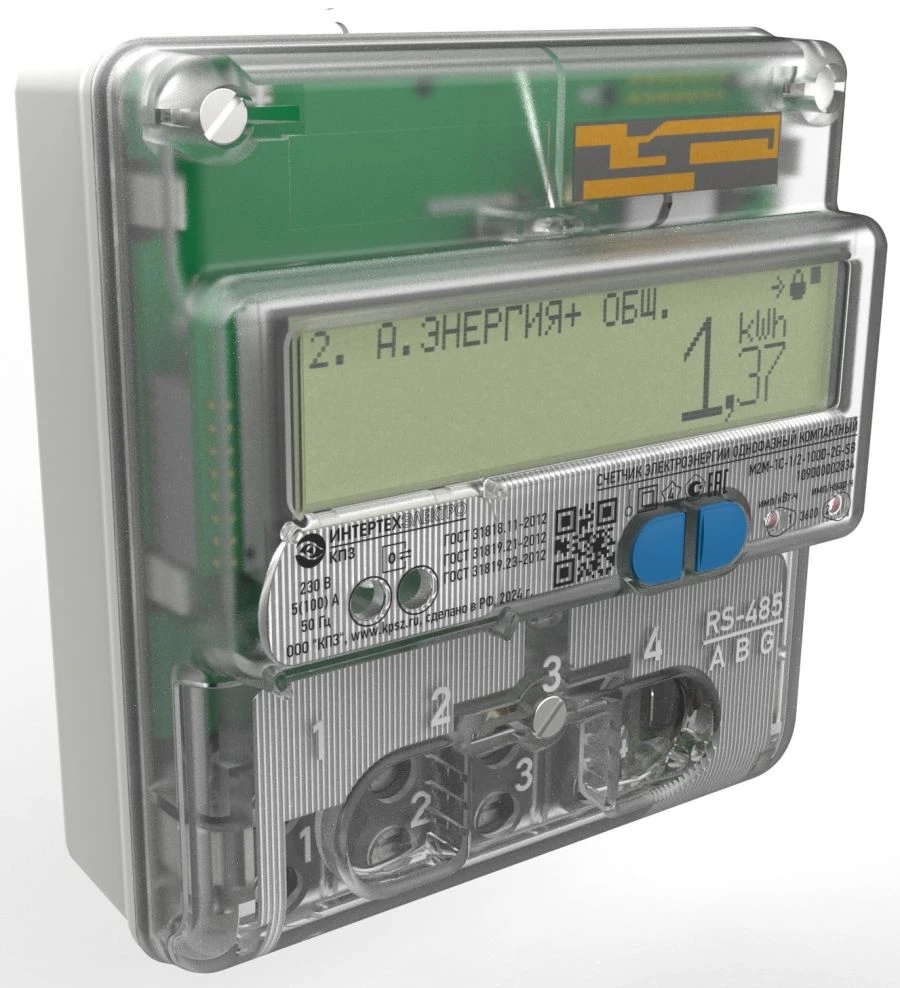

Compact Single-Phase Energy Meter M2M-1C for Efficient Energy Management

Electricity Meters

Manufacturer: KPZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The M2M-1C is a static meter of single-phase compact static M2M-1C designed for measurement and multi-tariff accounting of active and reactive electrical energy of forward and reverse directions in single-phase AC networks of industrial frequency. The meter can be used both autonomously and as part of automated information and metering systems for electricity metering SPODES (IEC62056 DLMS/COSEM). The meter is designed for use in closed rooms in the operating range of ambient temperatures from minus 20 C to +45 C and relative humidity up to 95% at +30 C, operation in the range of limiting ambient temperatures from minus 40 C to +70 C is allowed.

Specifications

Number of phases

Type

Multi-tariff

Type of readout device

Electronic

Maximum operating temperature

70 °C

Rated current

5 A

Maximum current

100 A

Nominal voltage

230 V

Minimum operating temperature

-40 °C

Degree of protection against penetration of solid objects and water according to GOST 14254-2015

IP51

Operating voltage range

160...265 V

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Accuracy class for active energy

1,0

Accuracy class for reactive energy

2,0

Mounting type

DIN rail or screws

Main communication channel

2G (GPRS)

Backup communication channel

RS-485; Bluetooth Low Energy (BLE); none*

Supported protocols

SPODES

Weight

0.5 kg

Type of metered energy

Active and reactive

Dimensions, HxWxH, mm, not more than

123x106x63

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
