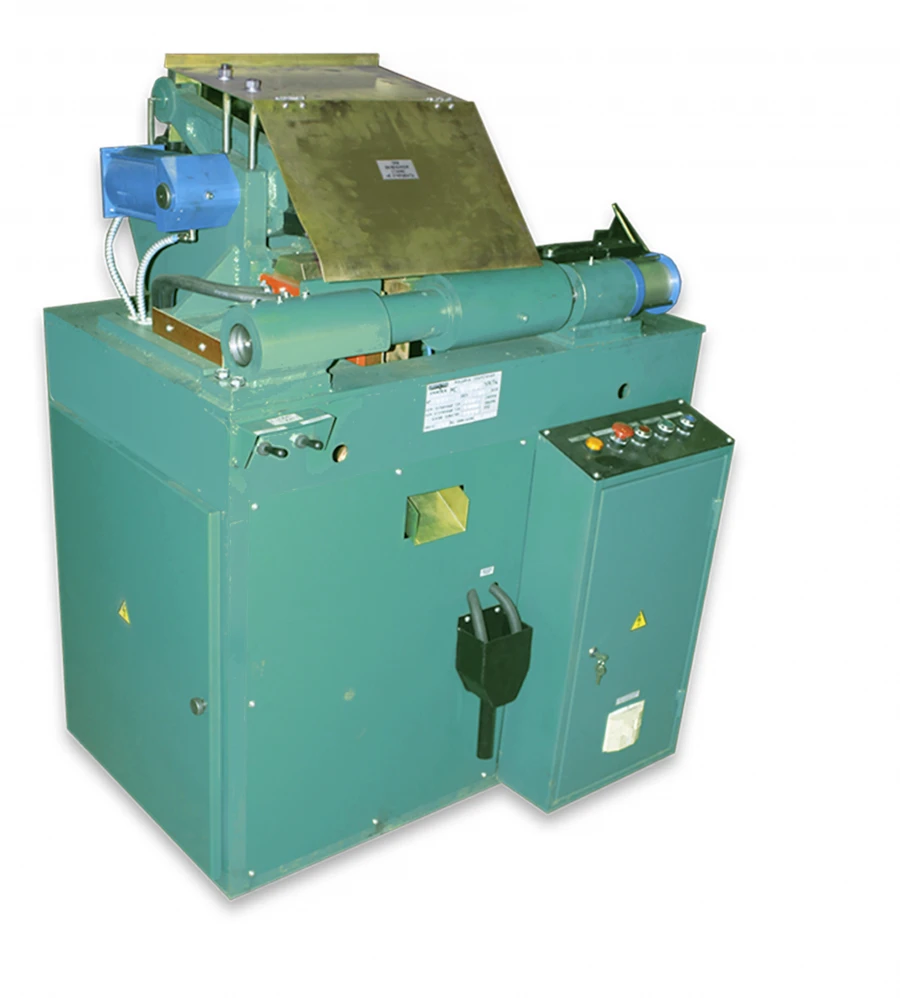

Contact Butt Welding Machine MSO-201.03 for Seamless Welding Applications

Machine for contact butt fusion welding model MSO-201.03 (hereinafter referred to as "machine") is designed for butt welding by continuous fusion and fusion with preheating of parts made of low-carbon steel with a compact cross-section of 120...1400mm2, as well as tool blanks and blanks of building structures made of low-alloy steel, including reinforcement of reinforced concrete of II and III classes, diameter up to 28 mm inclusive.

The machine is designed for the needs of national economy in climatic version UHL4. The machine MSO-201.03 normally functions in climatic conditions corresponding to GOST 15150-69 and GOST 15543-70, including: at ambient temperature from +5°C to +40°C; ambient humidity: average monthly value (at 20°C) from 20 to 65%; upper value (at 25°C) - up to 80%.
