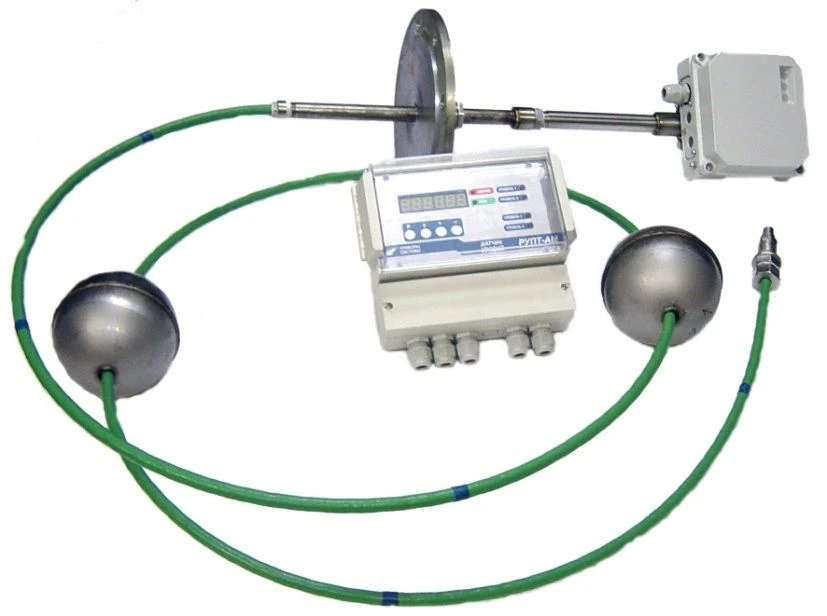

Continuous Level Sensor RUPT-AM for Accurate Liquid Level Monitoring

Level Measurement Instruments

Manufacturer: SKB "Instruments and Systems" LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for: continuous conversion of level and level of interface of liquid media into a standard current signal; 0-5; 0-20; 4-20 mA;determination of temperature of liquid media (temperature determination is carried out with non-normalised accuracy);determination of volume of controlled medium in the tank with non-normalised accuracy;digital indication of one of the parameters (level in mm, level of interface of media in mm, temperature in C, volume in units specified in the graduation table) or all the listed parameters in turn;visual and relay (dry contact type) signalling of setting

Specifications

PP with rigid sensing element

1,0; 1,6; 2,0; 2,5; 3,0

PP with flexible sensing element

4,0; 6,0; 8,0; 10,0; 12,0; 16,0

For version with one float when measuring the level of a medium or the interface of two media

Not more than 265 mm

For version with two floats

At level measurement: not more than 690 mm; at partition measurement: not more than 390 mm

Upper measured level

Not more than 300 mm

Current output signal ranges, mA

4...20

Temperature of the controlled medium

-40+80C or -40+120C (depending on the sensor version)

AC supply voltage

187-242 ?

AC frequency

50+/-1 gc

DC supply voltage

12+/-1,5 and 24+/-2,0 V

Alarm error

+/- 2 mm

Alarm differential

5 mm

Density of the controlled environment

Not less than 0.5 g/cm3 (500 kg/m3)

Difference in density of upper and lower phases at interface control

Not less than 0.1 g/cm3

PP with rigid sensing element

Not more than 1,6 (4,0* - on Customer's request) MPa

PP with flexible sensing element

Not more than 0,2 MPa

Primary converter

Category of placement 1.1 at temperature -50-0 C

Transmitting converter

Category of placement 4.2 at temperature +5+40 C

Power consumption, max.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
