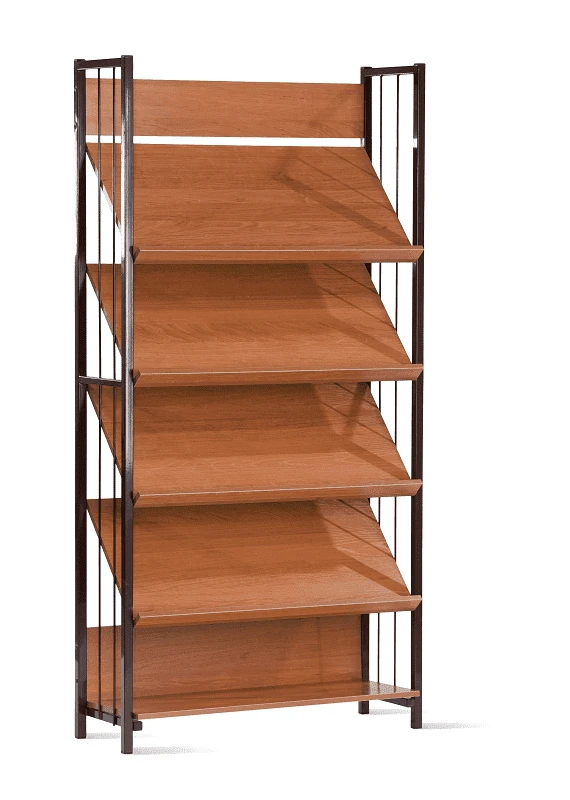

Demonstration Rack STD-2 for Effective Product Display Solutions

The shelving unit is made of welded metal frame made of thin-walled square tube with cross-section 25x25x1, 5 mm and bar Ø6 mm. The metal frame is painted with protective polymer-powder enamel. The shelves with spars are made of 16mm thick E1 emission class LDF of wood textures and are fastened with 7x50 euro screws.

All front panels are lined with PVC-2, 0mm edgebanding, the rest with 0, 4mm edgebanding. Four shelves with edge are mounted at an angle of 550 to the horizon. The shelves are fastened to the frame with self-tapping screws, the upper rib and the lower shelf are fastened through the frame with 7x70mm euro screws.

The ends of the pipes are closed with plastic plugs. The length of the shelves is 850mm, the depth of the inclined shelves is 420mm, the depth of the horizontal shelf is 308mm. Distance between shelves - 310mm, height of the lower shelf surface from the floor - 100mm.
