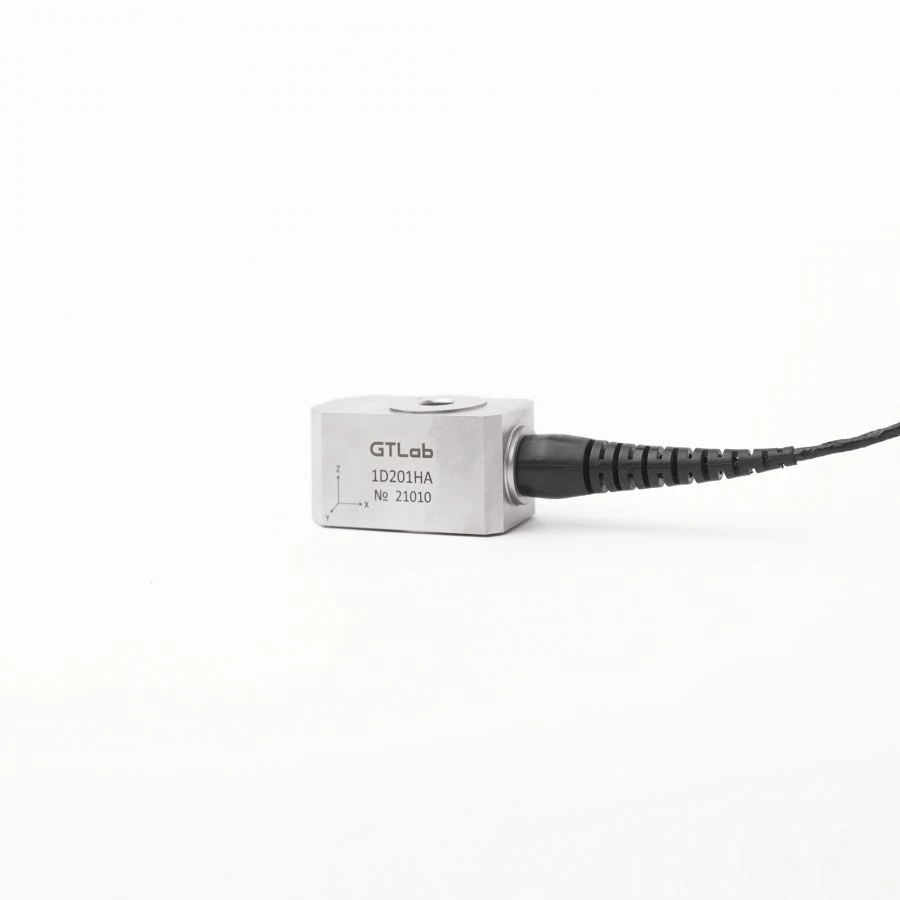

Digital 3-Component MEMS Accelerometer 1D201HA for Vibration Measurement

Movement Measurement Devices

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Digital three-component MEMS accelerometers 1D201HA with RS485 output. Designed to measure the values of RMS, Peak and Swell values of vibration acceleration, vibration velocity and vibration displacement in the range up to 1kHz. They can connect up to 8 sensors on one bus, control via MODBUS protocol

Specifications

Measured amplitude range of vibration accelerations

0 ...100 m/s2; 0 ...200 m/s2; 0 ...400 m/s2

Measurement mode

vibration acceleration, vibration velocity, vibration displacement

Detector

Swing, Peak, RMS

Measured temperature range of the integrated sensor (± 2 °C)

- 40 ... +85°?

VHF

2, 3, 5, 10 Hz (user adjustable)

200,500,1000 Hz (user adjustable)

Operating frequency range - frequency response unevenness ± 3 dB

2 ...1,000 Hz; 3 ...1,000 Hz; 5 ...1,000 Hz; 10 ...1,000 Hz (user adjustable)

Maximum impact (peak)

± 1,000 m/s2

Relative transverse conversion ratio

< 5%

Operating temperature range

- 40 ... +85°?

Output

RS-485, Modbus RTU protocol

Supply voltage ± 10 %

+ (5 ... 12) ?

Consumption current

? 20 mA

Number of measuring axes

3 (x, y, z)

Housing material

stainless steel

Weight

160 ?

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
