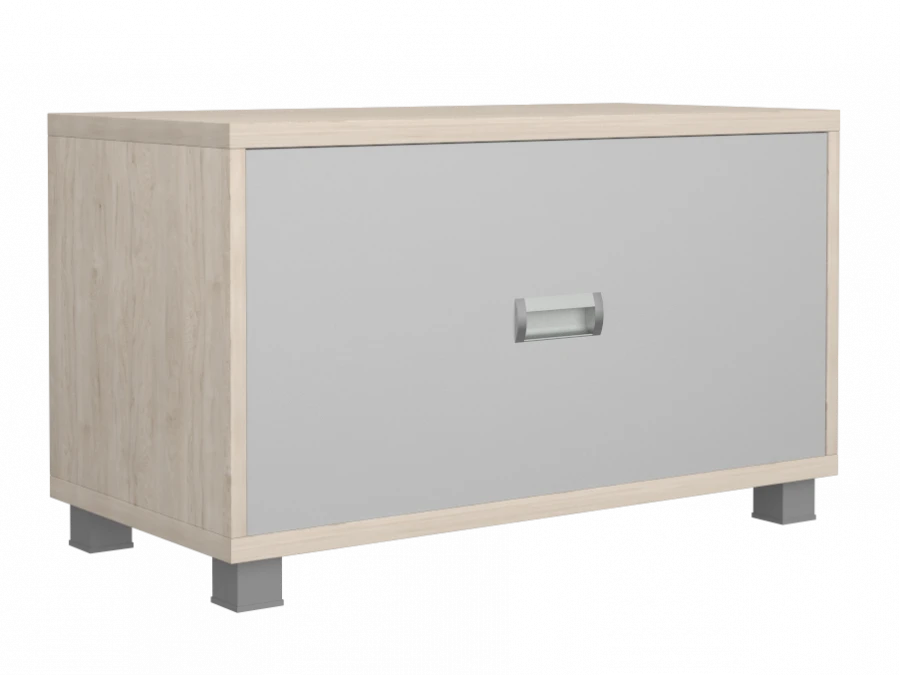

Educational Resource Cabinet Model FR2.1 for Efficient Learning Organization

Dimensions 724x362x432 mm. Top 724x362, LDFP 22m. PVC edgebanding on the front 2mm, left, right and back 0.4mm.

The slot for the back wall is located along the back. Fastened to the sides with eccentric ties and screws. Base 724x362, LDPE 22m.

PVC edging 2mm on the front, 0.4mm on the left, right and back. The groove for the back panel is located along the back. The base has through holes for height adjustment of the supports.

Side panels 338x360, 2 pieces, 16 mm LDF. The groove for attaching the rear wall is located along the rear. There are holes for fixing the door using 6.3x13 Euroscrews, holes for mounting shelf holders and marks for fixing the guides.

Rear wall 348x702, lacquered single-sided CDF, thickness 3 mm, front side white, installed in a groove. Plastic supports are height adjustable, rectangular in shape. Height 52mm.

Complete with a drawer : Metal handle of mortise type with plastic plugs.
