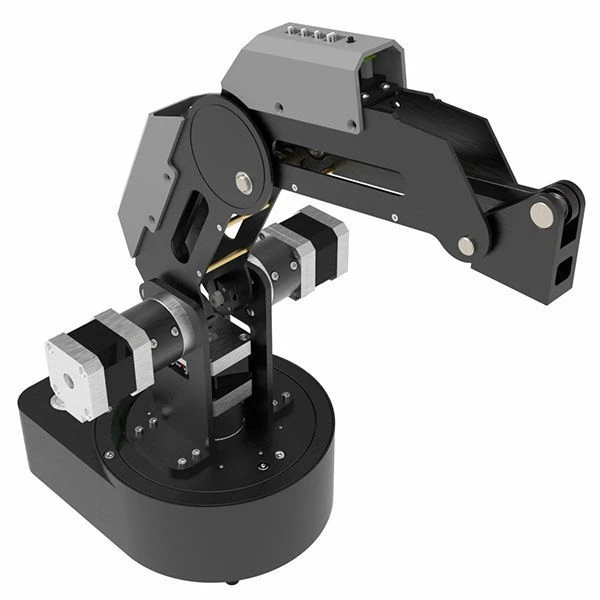

Educational Robotic Manipulator SD1 for Learning Robotics Applications

The educational robot is designed to master the basics of robotics and prepare students for the introduction and subsequent use of robotics in industrial production.

Supply kit: Power supply unit. Suction cup with servo motor. Mechanical gripping device. Pencil and/or felt-tip pen holder. Laser engraving device complete with glasses. 3D printing device. A remote control. Wireless communication module. Designer mount.

Technical specifications: Number of axles: 4. Working radius: up to 350 mm. Motor type: stepper motors. Rotation angle: first axis 180°, second axis 125°, third axis 140°, fourth axis 180°. Repositioning accuracy: 0, 2 mm. Maximum payload: up to 500g. Installed power: 100 W. Rated voltage: 180-240 VAC with frequency 50/60 Hz. Operating temperature: 0 to plus 40°C. Protection class: IP20. Overall dimensions (WxHxH): 216x421x.
