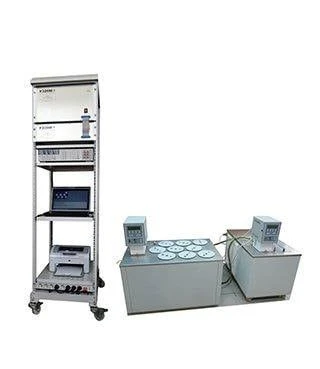

Electrical Resistance and Electromotive Force Testing Device U309M for Accurate Measurements

Digital Electrical Meters

Manufacturer: RES LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The unit is designed for verification of single-valued measures (coils) and multi-valued measures (shops) of electrical resistance and measures of electromotive force (normal elements, reference voltage sources). The installation is entered in the State Register of Measuring Instruments, No. 43671-10

Specifications

DC voltage measurement range

0 to 1000 V

Measuring range of electrical resistances for MMES verification

10?³ – 1,2·10? ohm

DC voltage reproduction range

0 to 200. V

DC power reproduction range

0 to 18 A

Relative error tolerance limits for verification of OMES in the range 0,001 - 0,005 Ohm

±0,0006 %

Relative error tolerance limits for OMES verification in the range 0,005 - 0,05 Ohm

±0,0004 %

Relative error tolerance limits for OMES verification in the range 0,05 - 0,5 Ohm

±0,0003 %

Relative error limits for verification of OMES in the range 0, 5 - 5 Ohm

±0,0002 %

Relative error tolerance limits for verification of WECs in the range of 5 - 50 Ohm

±0,00015 %

Relative error tolerance limits for verification of OMES in the range 50 - 500 Ohm

±0,00007 %

Relative error tolerance limits for verification of OMES in the range 500 - 50 000 ohms

±0,000035 %

Relative error tolerance limits for verification of OMES in the range of 50 000 - 100 000 Ohm

±0,000015 %

Connector type

Ethernet

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
