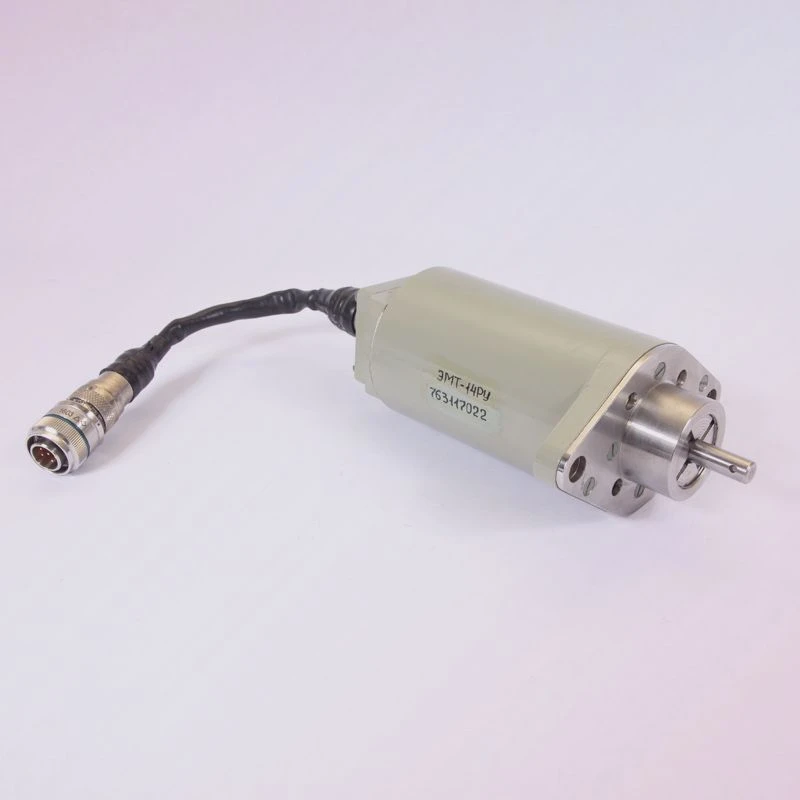

Electromagnet EMT-14RU for Engine PD-14 Lock Control and Operation

Aircraft Spare Parts

Manufacturer: ELECTRODRIVE OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Electromagnet pulling with one working winding. It is intended for controlling the inclusion of the PD-14 engine reversing device lock when working in the system with the PD-14 engine reversing device.

Specifications

Weight

2.3 kg

Overall dimensions

367.5x62.5x100 mm

Operating temperature

-60...+60 °C

Triggering/release time at supply voltage not less than 22 V and ambient temperature not less than minus 30 º? and not longer

0.1

The force developed on the solenoid stem at the end of the working stroke under all operating conditions.

78.4

Force developed on the solenoid stem at the beginning of the stroke in all operating conditions.

4.9

Working stroke of the core

9 mm

Rated DC supply voltage

28 V
