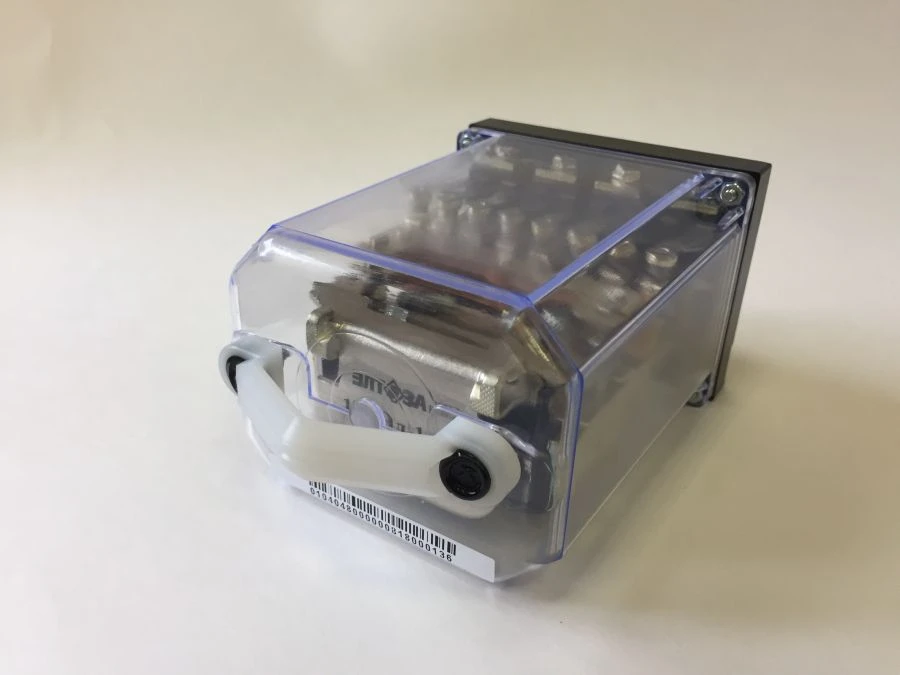

Electromagnetic Relay Type 1N-El-340 for Reliable Automation in Railway Systems

They are intended for operation in continuous mode as part of automation and telemechanics equipment on railways in conditions of macroclimatic region with moderate climate (climatic execution UHL category 3 according to GOST 15150-69, but for temperatures from minus 60?? to plus 60??, relative air humidity up to 98% at temperature plus 25??). Relays belong to classes MS1 and K3.1 according to GOST 32668-2014.

The relay is a plug-in relay for installation on stands and in relay cabinets. It has 6 switching contacts (6 ft) and 2 closing contacts (2 f). Release not less than 2.5 V, actuation not more than 8.0 V, supply voltage (12±10%) V.

Resistance of one winding is (170±10%) ohms. Circuit resistance of closing contacts is 0.3 Ohm, opening contacts - 0.03 Ohm. Contacts provide 1800000 switching on and off of circuits by each contact of active load 2 A, 24 V DC or 0,5 A, 220 V AC.
