Available for Import

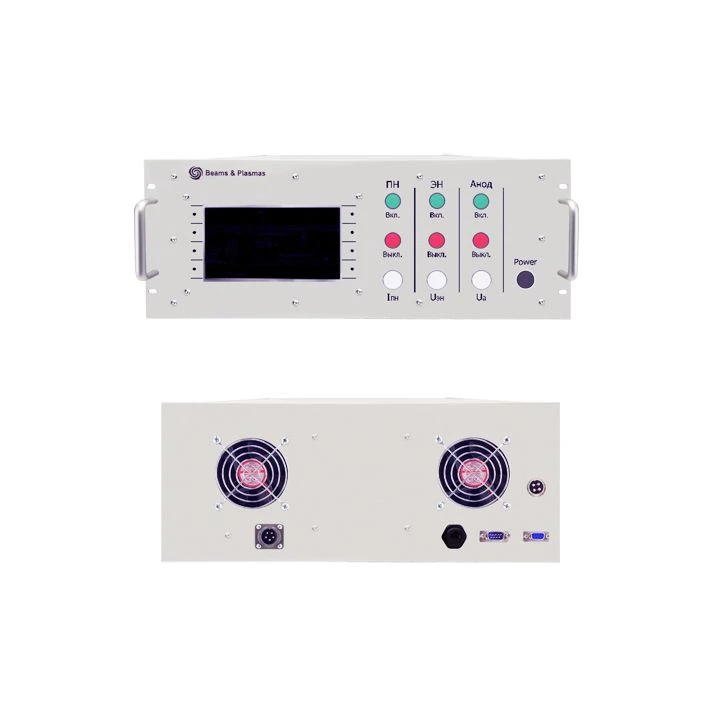

Electronic Beam Evaporator Control Unit for Precision Heating Applications

Electrical Interface Devices

Manufacturer: LVT+ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The electron beam evaporator control unit is designed to control the position and focusing of the electron beam for heating of two objects by the electron beam gun.

The unit is equipped with: <ul> <li>- RS-485 interface for communication with a computer</li> <li>Modbus RTU protocol control</li> </ul> The device is supplied complete with ELP PU (electron beam gun control panel) LCMK.361.10.00.00.00-01.

*Operating Manual is available on request: LSMC.361.00.00.00.00-01 RE ELECTRONIC-beam gun control unit It is allowed to deliver the device as a part of the installation without packing. On request, standard modernisation of the device by the manufacturer is possible.

Specifications

Assignment

Controlling the position and focusing of an electron beam for heating two objects with an electron beam gun

Dustproof

Yes - The unit housing is made of metal and has no exposed live parts

Cooling

Air

Type of construction

Built-in

Front control panel

Got it

Warranty period

1 year

Climatic designs

GOST 15150-69; GOST 15543-70 at normal values of climatic factors of the environment - UHL for product placement category 4.2

Power supply voltage(AC)

220 ±10% V

Power consumption

350 W

Stabilization modes

Voltage, current

Interface

RS-485

Data transfer protocol

ModBus RTU

Communication with electron beam gun control panel (EBP)

RS-485 Modbus RTU

Communication and plant control system

Ethernet

Overall dimensions, (length x width x height)

482x190x177 mm

Weight, not more

5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
