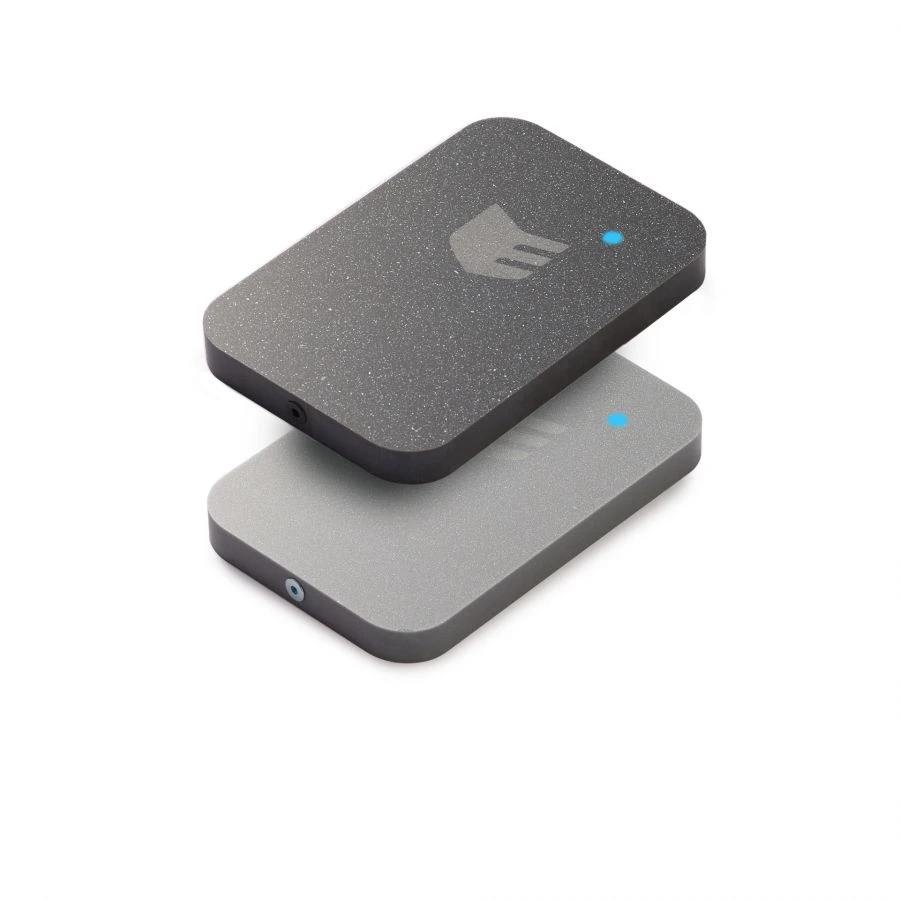

ESMART® BLE Multi-format Reader STONE Series ER1701 for Access Control

Wired Information Systems

Manufacturer:AT BUREAU LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Multiformat reader for ACS. The size of the case gangbox. In the case of artificial stone Dupont Corian ® with the possibility of engraving on an individual layout from 1 piece.

Compatible with 2.4 GHz (BLE) identifiers: ESMART® Access mobile identifiers. Compatible with 13.56 MHz (NFC) identifiers: ESMART® Access, MIFARE® (ID, Classic, Plus SL1\SL3), ISO14443 (UID reading), ISO15693 (UID reading), ESMART® Access mobile IDs, Bank Cards (UID reading, CPLC reading, MIFARE® Emulation mode operation). Self-configuration with the ESMART® Configurator application.

Wiegand 26, 34, 58, other.

Specifications

Model

ER1701

Series

STONE

Size

Gangbox

Case

DuPont Corian®

Case color

Anthracite / Silverite / Personalised

Compatible with 13.56 MHz IDs (NFC)

ESMART® Access; MIFARE® ID; MIFARE® Classic; MIFARE® Plus (SL1 / SL3); ISO14443A; ISO15693; ESMART® Mobile ID Access (HCE); Bank Cards (UID / CPLC / MIFARE®)

Reading distance 13.56 MHz (NFC)

ISO15693 up to 15 cm, others up to 10 cm

Compatible with 2.4 GHz IDs (BLE)

ESMART® Mobile IDs Access

Reading distance 2.4 GHz (BLE)

up to 10 m

Connection interface

Wiegand

Data transmission format

Wiegand 26, 34, 58, own format

Device inputs

Four-mode backlighting (GLED, RLED), buzzer (BUZZ) controlled by the lower level

Connection type

Cable 0.5 m

Nutrition

5-12 V, DC

Consumption

150 mA (max.), at 12 V

Configuring the device

By NFC / BLE via ESMART® Configurator App

Configuration options with the ESMART® Configurator application

Identification technology management; Flexible setting of card operation modes; Encryption keys for MIFARE® Classic and MIFARE® Plus (SL1 / SL3); Universal setting of Wiegand operation parameters; Setting of Bluetooth parameters; Setting of audio and

Recommended mounting location

Flat surface

Dimensions

113 x 69 x 10 mm

Weight

141 year

Dustproof

According to IP68

Operating temperature

– 40 ... +85°C

Storage temperature and humidity

- 40 ... +85°C, 0% to 95% non-condensing

Equipment

Reader, Mounting kit, Instruction manual

Production

Russia, Zelenograd

Warranty

3 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
