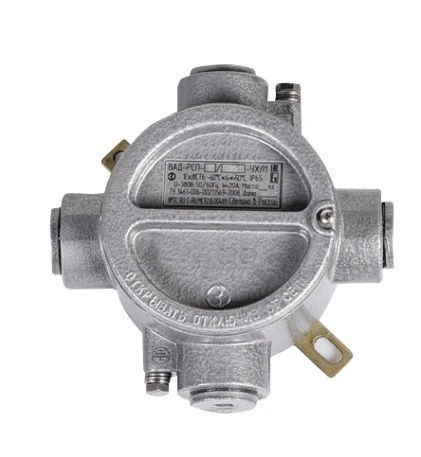

Explosion-Proof Distribution Box VAD-RSP for Hazardous Areas
All Categories

Categories

Language

Quick Links

WhatsApp Inquiry
Explosion-Proof Distribution Box VAD-RSP Available for Import

Explosion-Proof Distribution Box VAD-RSP for Lighting in Hazardous Zones

Electrical Circuit Devices
Manufacturer: VELAN OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The boxes are designed for use as a Distribution Box and/or mounting element for lighting equipment installed in hazardous areas .

Specifications

Weight
1 kg
Climatic version
U1, UHL1, OM1
Operating temperature
-60...50 °C
Degree of protection against external influences
IP67;IP66;IP65
Explosion protection marking
1Ex e IIC T6 Gb, Ex tb IIIC T80°C Db.; 1Ex d ia IIC T6 Gb, Ex tb IIIC T80°C Db;1Ex d IIC T6 Gb, Ex tb IIIC T80°C Db
Overall dimensions (DxWxH)
145x145x75
Number of terminal clamps
6 pcs
Rated current
30 A
Nominal voltage
380 V
