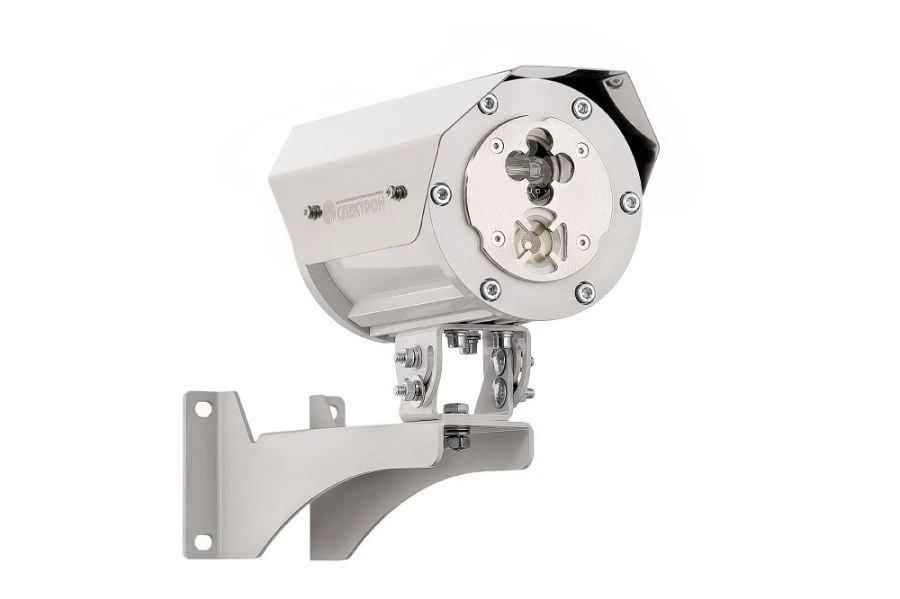

Spectron-601-Exd-M Flame Detector for Effective Fire Protection

Fire Alarm Detectors

Manufacturer: SPEKTRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Fire flame detector. Made in a housing made of galvanised steel. With the function of self-monitoring, operating in the infrared and ultraviolet ranges.

The detector is designed for fire extinguishing and fire alarm systems at oil and gas facilities and their infrastructure. The detector is equipped with self-test function with transmission of the "Fault" signal to the control panel. Meets the requirements for explosion-protected equipment of group I and subgroups IIA, IIB, IIC.

It is intended for operation in hazardous areas of classes "1" and "2" of closed objects and outdoor installations. Standard configuration of the detector includes a relay signal "FIRE", relay signal "FAULT" and digital interface RS-485 with support for the protocol Modbus/RTU. Equipped with a function of control of dustiness of the optics.

Specifications

Housing material

stainless steel

Operating temperature range

Flat grinder, Specialised grinder °C

Explosion protection marking

RV Ex db I Mb/1Ex db IIC Gb/Ex tb IIIC T85°C Db

Power supply voltage

9...32 V

Overall dimensions

128x231x279 mm

Recovery time

Viewing angle

Flat grinder, Specialised grinder

Type of climatic version according to GOST 15150

UHL1, OM1

Protection against impulse overvoltages (surge protection) according to GOST R 51992-2002

III

Resistance to three electric arc or argon welding stations

4 m

Connection

4-wire

Degree of protection of the shell, IP

Operating temperature

(55);+90 °C

Designation

SPECTRON 600 Series 600 Multidirectional IR/UV IP329/330 Flame Detector

Assignment

Designed for fire extinguishing systems and fire alarm systems at oil and gas facilities and their infrastructure

Sensitivity levels

Grade 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
