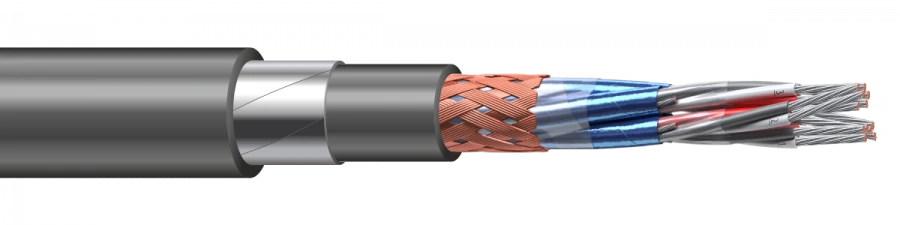

Flexible Installation Cables EPOKS with Copper Conductors

Available for Import

Flexible Installation Cables EPOKS for Reliable Electrical Connections

Installation Cables

Manufacturer: Podolsk Cable OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Mounting flexible cables EPOKS with flexible copper or tinned copper conductor with plastic insulation, common twist, pair twist, twist by triple or quadruple, with or without water-blocking tape, with screens per conductor, pair, triple, quadruple from different materials and without screen, with common screen from different materials, with plastic sheath, including XL version, including oil and benzene resistant, including flame retardant are designed for industrial automation systems and data transmission networks, transmission of digital and analogue signals, for inter-device mounting of electrical devices operating at rated alternating voltage up to 660 V inclusive with frequency up to 400 Hz, for cables with polyolefin insulation with frequency up to 1 MHz inclusive. Service life is not less than 35 years at operation at the temperature of minus 50 to 80 °?, for cables in XL version at the temperature from minus 60 to plus 80 °?. At laying in the ground, earth for all grades service life is not less than 25 years.

Specifications

Core material

M - copper flexible multi-wire; single-wire (ok); - copper flexible tinned multi-wire

Insulation material

Ps - cross-linked polyolefin

Fire hazard class

ng(A)-(XL) - P1b.8.2.5.4; ng(A)-LS, -XL - P1b.8.2.2.2; ng(A)-FRLS - P1b.1.2.2.2.

Gasket type

for inter-device mounting, buried installation

Individual screen

E - braid of copper wires; El - braid of tinned copper wires; Ef - alumoflex with contact conductor; cables for intrinsically safe circuits i with insulated shields.

Bandage (wrap)

- plastic tape; -1 - water-blocking tape; -2 - electrically conductive water-blocking tape

General screen

E, El - braid; Ef - alumoflex with contact conductor; Efm, Efl - combined screen of alumoflex and braid

Inner shell

inner shell with filling (extruded substrate)

Armor

B-wrapping made of 2 galvanized steel straps

Protective sheath

Vng(A)-PVC of reduced flammability; Vng(A)-CHL -PVC cold-resistant; Vng(A)-LS, -FRLS -PVC of reduced fire danger

Section

0.35 to 6.00 mm²

Number of cores

2 to 70

Number of pairs, threes, fours

pairs - 1-37; threes - 1-24; fours - 1-10

Flexibility class

Single-wire of the 1st class (in the designation ok) or multiwire of the 4th (5th is allowed) class according to GOST 22483.

Execution

The cable can be made in oil and gas resistant version and in "intrinsically safe circuit i" version.

Service life

Not less than 35 years at operation at temperature - 50 to +80 °?, for cables in XL version at temperature - 60 to +80 °?. At laying in the ground for all brands the service life is not less than 25 years.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
