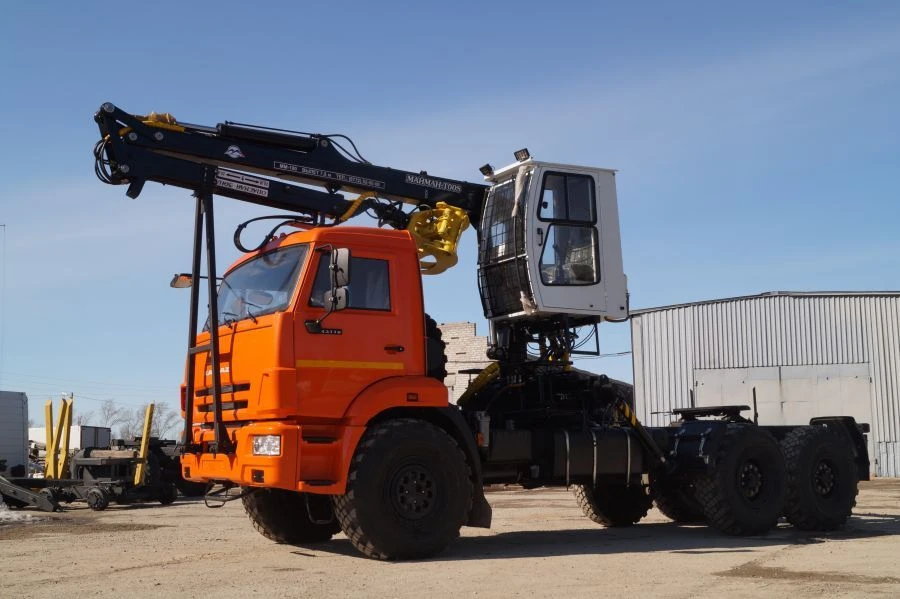

Forestry Loader MM-100 Manipulator for Heavy Load Applications

Designed for use as technological equipment on vehicles with load-carrying capacity of 5t and more, on the basis of tractors of traction class 3....5 and stationary to perform loading and unloading and other works with the use of load-carrying bodies in forestry, woodworking industry and other sectors of the economy. It is made of high-strength steel S500.The basic equipment includes hydraulic extension of support beams and control and safety system M-STAR (parameter recorder).It can be equipped with double-circuit control system, which allows to increase labour productivity by 1.8 times and lifting cabin. Supplied with timber grapple or other grapple according to the order.

Can be mounted at the rear on the end of the base chassis frame or at the front behind the cab.
