Available for Import

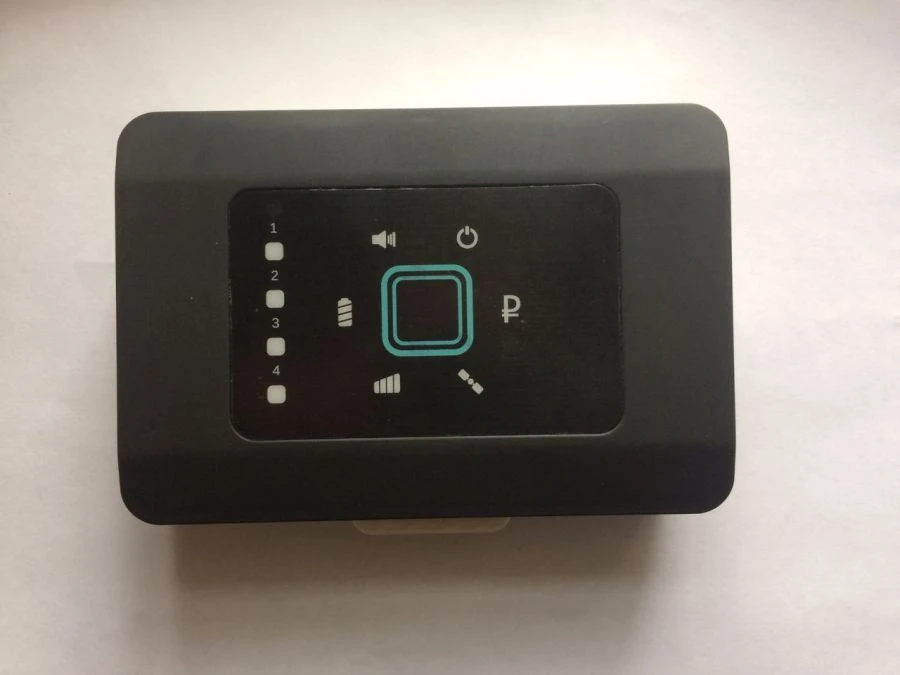

GNSS Navigation Device MT 001 for Accurate Positioning and Speed Measurement

Data Interface Devices

Manufacturer: MOSOBTELEMATIKA LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The product is designed to receive GNSS navigation signals and determine on their basis the navigation parameters of the vehicle (geographical coordinates, speed of movement, etc.), record and store the collected information in non-volatile memory and transfer it to the subsystem of data reception and processing from on-board devices.
The CU is an object of the "System of charging to compensate for damage caused to public roads of federal significance by vehicles with a permitted maximum mass exceeding 12 tonnes".

Specifications

Operating conditions

meet the requirements of GOST 16019-2001 for apparatus group B4

Modem

GSM-900

Battery charge cycles, at least

1000

ROM volume, not less than

128

Overall dimensions of the enclosure

140x100x40 mm

Weight

400 year

Power consumption in "Sleep" mode

1 W

Peak power consumption

6 W

Average power consumption

2 W

Electromagnetic compatibility

GOST 33991-2016; GOST 30378-95; UNECE Regulations No. 10, paras. 6.5, 6.6, 6.7; TR TC 020/2011.

Measurement error

Confidence limits of absolute instrumental error (at confidence probability 0,95) of location coordinates determination on coordinate axes do not exceed ±15 m when working on GLONASS (L1, code ST) and (or) GPS code (L1, code C/A) signals at

Operating temperature range

-40...55

Supply voltage

9...50 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
