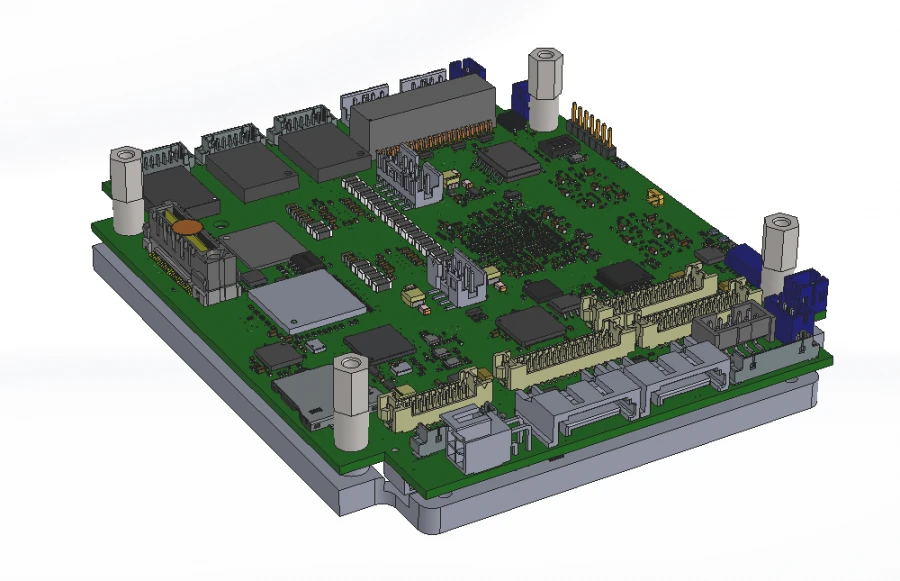

High-Integration ARM Processor Module CPC318 for Real-Time Control Systems

Advanced Computing Devices

Manufacturer: DOLOMANT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The product is a highly integrated solution on the ARM platform (Cortex A53, 1892VA018) for use in real-time control systems, production control, data acquisition and processing and can operate in stand-alone or slave mode. Connection of basic input-output means (VGA monitor, LVDS panel, keyboard, printers, USB) allows to use the product in systems with operator participation. For data storage can be used both inbuilt storage and external USB devices. The product is designed in StackPC OneBank format and allows solving most of the tasks of signal processing, control, input-output. Expansion of the product functionality is possible by connecting additional expansion modules of the StackPC OneBank format. The product can be connected to RS-232, RS-485, CAN, Ethernet networks, which allows to use it in distributed systems of input-output and information processing.

Specifications

Processor

1892VA018 "SKIFF"

RAM

One or two 4 Gbyte LPDDR4 SDRAM channels (soldered to the board); memory bus bit rate 32 bits; memory bus operating frequency 500 MHz.

Video subsystem

PowerVR 8XE video controller up to 800 MHz

DSP core

ELcore50

Video outputs

VGA and eDP up to 1920x1080 resolution, 32 bit colour; LVDS 1/2 channels, 18/24 bit colour

Video inputs

Two MIPI CSI2 1.2 channels (4 lane)

StackPC OneBank bus

3 x PCIe x1 GEN2, 2 x USB 2.0

Non-volatile RAM

32Kbytes capacity; FRAM technology; no battery required.

Non-volatile ROM

16 Mbyte capacity; Flash technology, QSPI interface; does not require battery power.

EMMC disc

Connected to eMMC interface; 32 or 64 GB NAND Flash (pSLC)

USD card

uSDHC card up to 512GB supported

M2 connector

Supports 2280 size SSD drive with PCIe x 4 support

LAN ports

2 Gigabit Ethernet 10/100/1000 Mbps ports; 500V isolation of each port from the system

USB (host) ports

4 USB 1.1, USB 2.0 (HS, FS, LS) ports, including 2 ports on StackPC OneBank bus; 1 USB 3.0 (SS) OTG port.

Serial ports

Two RS-232 ports (transmit and receive lines only): up to 921.6 kbps; 15 kV ESD protection (IEC1000-4-2); one isolated RS-422/485 port (500 V individual system isolation): automatic (hardware) transmit enable control

CAN 2.0B Port

2 isolated CAN 2.0 B ports (individually isolated from 500 V system)

GPIO port

16 I/O lines; +5V (TTL) level compatible; output load up to 10mA

Audio port

Electret microphone input; stereo line input/output; 16 ohm headphone output

Real Time Clock

Consumption current with power off 2 µA

Built-in 3 V lithium battery

CR2032, typical capacity 200 mA*h (included)

Watchdog timers

Two watchdog timers built into the processor, programmable to reset or interrupt.

Integrated module temperature sensor

Measuring range from minus 55 °C to plus 125 °C

Operating temperature range

minus 40 to plus 85 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
