High-Performance Machining Center S250 for Complex Parts Processing
Manufacturer:
Stankoстроение LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

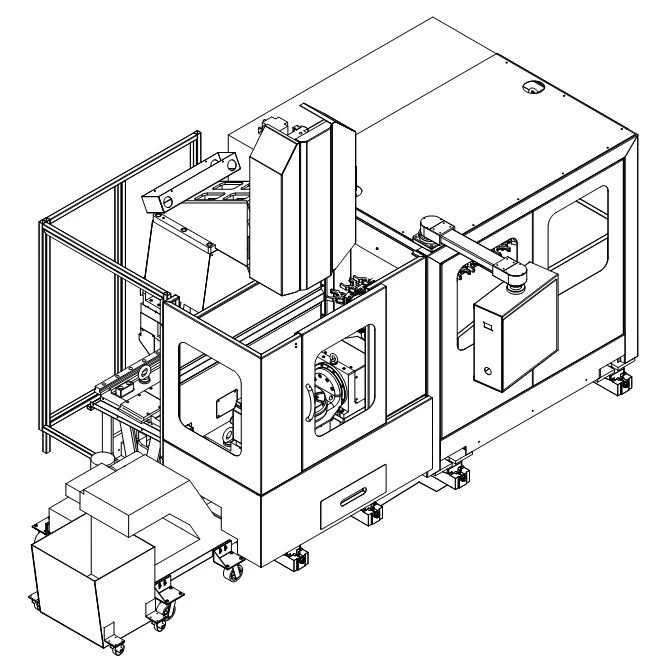

The machining centre model S250 is designed for high-performance milling of complex shaped parts with five axes. It is equipped with high-speed linear motion drives, tilt-and-turn table with an additional platform for three-axis machining. The delivery set includes: CNC system, high-speed milling spindle-motor, tool magazine, linear motors of X and Y axes, ball screws and guides, linear and angular displacement sensors, tilt-turn table, cutting zone fence, protection of guides and ball screws, automatic lubrication system, motor cooling system, pneumatic system, coolant supply and chip cleaning system, electrical cabinet, lighting.
Specifications
Machine weight
1800 kg
Tool magazine capacity
24
Maximum spindle speed
24000
Tool cone
ISO 40
Linear positioning accuracy
1 mm
Vertical movement
400 mm
Transverse movement
250 mm
Longitudinal movement
640 mm
Dimensions of the work surface of the flat table
250?250 mm
Faceplate diameter
250 mm
Number of controllable coordinate axes
5
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
