High-Reliability Power Supply Module PS550 for Autonomous Computing Systems

Computer Power Devices

Manufacturer: DOLOMANT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

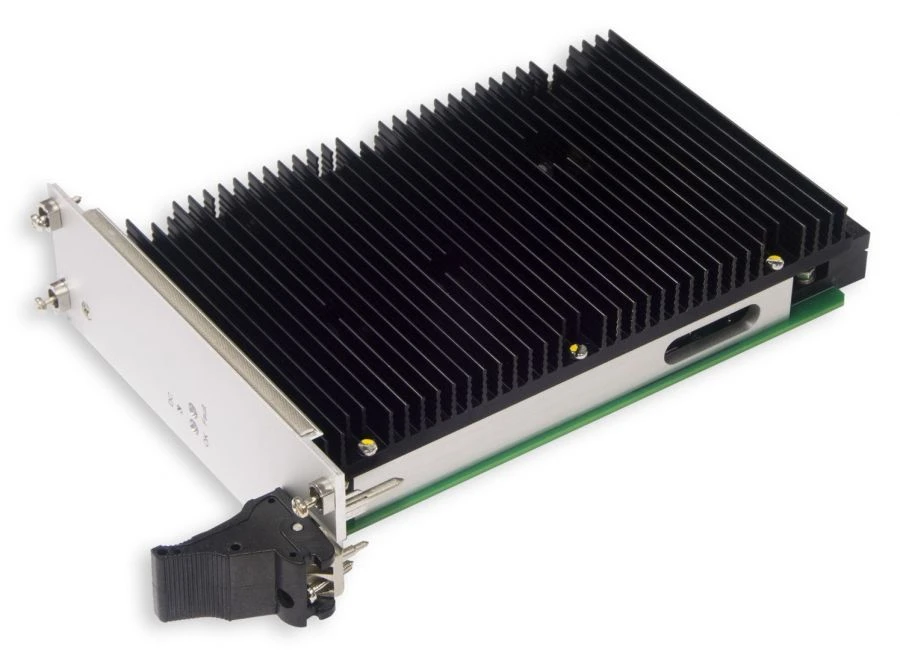

The PS550 power supply module IMES.436638.005 (hereinafter referred to as the module) is designed for use in highly reliable stand-alone modular computing systems based on the CompactPCI Serial PICMG CPCI-S.0 3U standard. The module is a galvanically isolated secondary power supply with a constant input voltage range of 18 to 72 V and output voltages of 12 V, 5 V; it is equipped with an intelligent on/off and operation monitoring system. The intelligent system measures the heatsink temperature and prevents the module from starting outside the performance range, and monitors the values of output voltages and current consumption.

Specifications

Form factor

3U CompactPCI Serial PICMG CPCI-S.0

Operating temperature

minus 40° C to +85° C

Replacing PS550 module in HotSwap mode

Armoured glass

Indication of module operation mode

Armoured glass

Setting the PowerGood signal: monitoring of all power supply output voltages

Armoured glass

Operation of several modules on one load

Armoured glass

Integrated temperature sensor

Armoured glass

SMBus control system interface

Armoured glass

Overload and overheating protection

Armoured glass

Minimum load current

For +5V and +12V channels not limited

Output voltages/currents

Plus 12 V / 17 A; plus 5 V / 5 A

Galvanic isolation input/output

1000 ?

Typical efficiency

82% at maximum load

Input voltage range

18-72 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
