Induction Cable Locator IKkt-300 for Efficient Underground Cable Detection

Surveying Instruments

Manufacturer: Kvazar LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The trace detector belongs to the class of indicators and is designed to determine by induction method the location of power cables without opening the ground, the routes of metal pipelines for various purposes.

The IKkt-300 trace detector has two operating modes:

non-contact - locating of operating power cables with current load, as well as energised pipes from cathodic protection stations;
contact - locating underground pipelines and de-energised power cables using the trace detector generator connected to the pipeline (cable) to be detected.

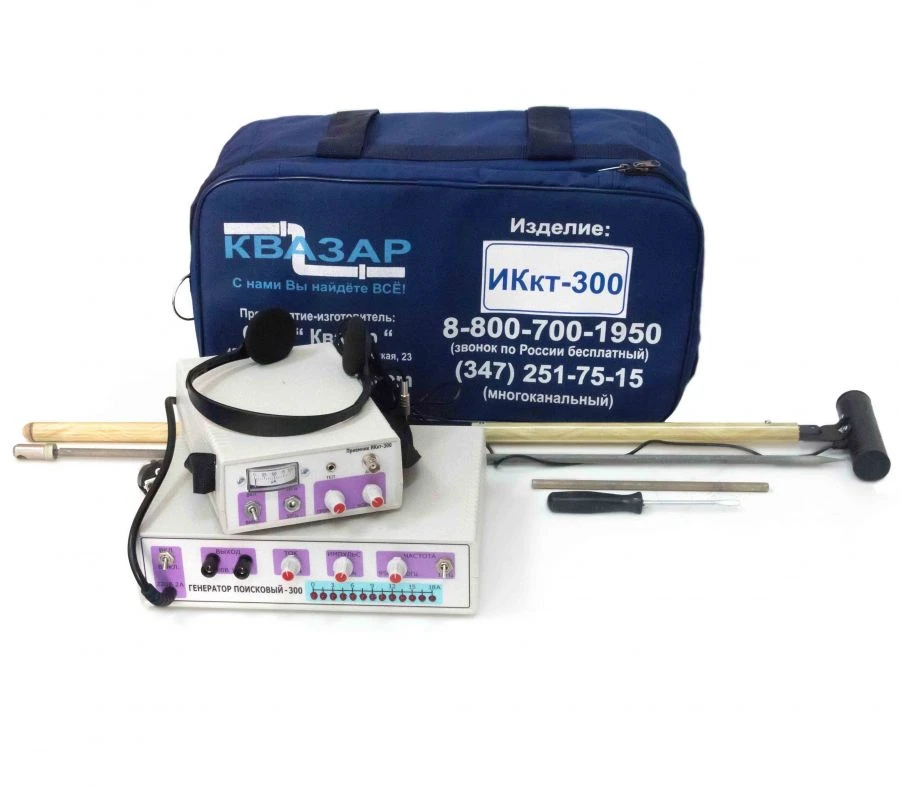

The IKkt-300 device consists of a generator and a receiver.

Specifications

Search range

up to 3 km

Accuracy of search of underground communications from depth of occurrence of communications

5 %

Dimensions of the product packed in a case

200x350x460 mm

Weight of the product packed in the case

6,5 kg

The generator is powered by AC mains power supply

voltage 220±20V; frequency 50 - 60Hz V

Output voltage at 10 Ohm load is, at least, V

20 V

Maximum load current in the range, A

0,15 to 15 A A

Generator frequency (fixed)

1000±2

Adjustable frequency

950 to 1100

Three-cell (AA) receiver power supply voltage, V

3.3 to 5 V

Central frequency of the receiver bandwidth in active mode, Hz

1000±50

The device retains its operability at operating temperatures, oÑ

From -20 to +40 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
