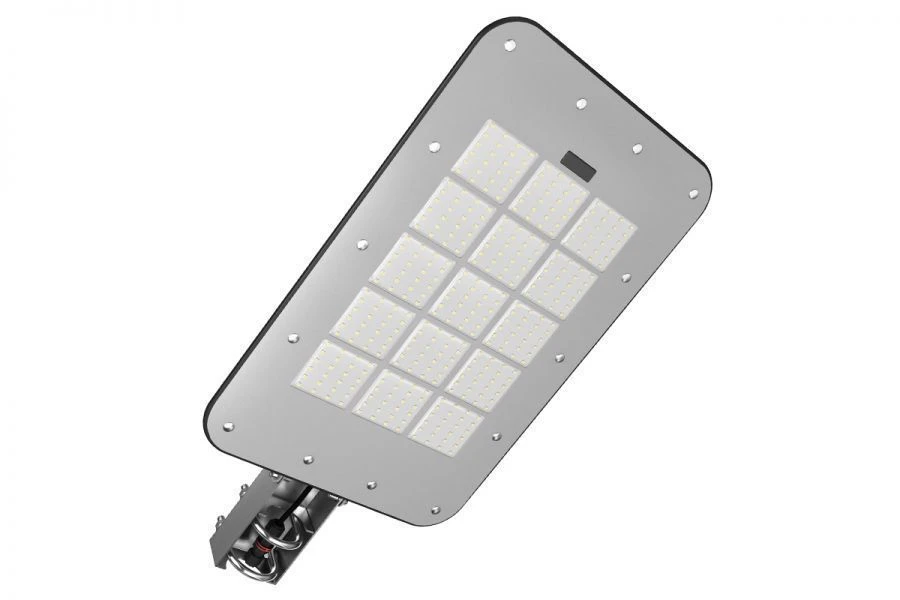

KEDR 3.0 and KEDR 2.0 LED Street Lighting Fixtures Available for Import

KEDR LED Street Lighting Fixtures for Outdoor Illumination

LED Lighting Fixtures
Manufacturer: LED-EFFECT LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

The KEDR series luminaires are designed for mounting on standard street lighting poles with a diameter of up to 48 mm, as well as can be mounted on the wall using a bracket with adjustable angle of inclination of the luminaire.

KEDR series luminaires are equipped by default with LEDs of cold white light (5000K), also on customer's request can be installed LEDs of neutral white (4000K) or warm white (3000K) light.

The luminaire housings are powder painted, the structural elements are made of stainless steel and are resistant to environmental influences.

The clever design of the luminaires allows the power supply to be replaced without dismantling the luminaires.

The luminaires have a high degree of protection against environmental influences - IP66/67..

Specifications

Type of product according to PP RF 616
Lighting fixtures and lighting fittings other than those included in other groupings
Model
LE-SCU-32-200- xxxx-65x
IK code
8
Power factor
0.95
Power consumption, W
200 W
Rated supply voltage
220...230 V
Type of supply current
AC
Housing material
Aluminum
Pulsation factor
1 %
Luminous flux
32000 lm
Climatic version
UHL1
Power consumption
200 W
Correlating color temperature (CCT)
2700...5700 K
Degree of protection
ip66/67
Net weight
5.4 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
