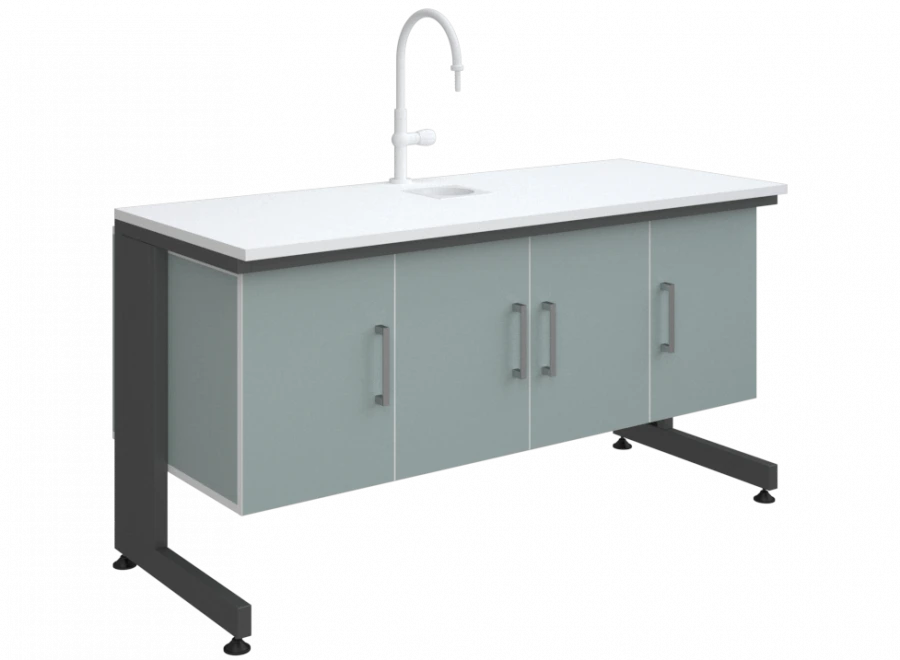

Laboratory Table with Sink Type 1 Low for Efficient Workspaces

Size 1500x600x750mm.Rack 728x550.Has a C-shape.Made of pipes 30x30x1,5mm,60x30x1,5mm and sheet metal 0,7mm.In the rack (sidewall) inserted metal box.The size of the box 200x588mm.The rack (sidewall) is welded.All visible, end holes of pipes are closed with plastic plugs.Tsarga 1420?648mm.It is made of pipe 30?30?1,5mm and sheet metal 0,7mm in the form of a box. The box is bent from the sheet metal, thickness 0,7 mm and has the sizes 1360?558mm and a border on perimeter 15mm.Frame 1420?510mm.Is executed from a pipe section 60?30?1,5mm. The frame is welded.

In the frame 4 holes with a diameter of 11,5 mm under the rivet M8, to fix the frame to the supports, as well as 10 holes with a diameter of 9,3 mm under the rivet m6, to fix the cabinet.Cabinet LDPE 16mm. Top: 1388x520.Bottom: 1388x520.Sides: 476x520 2pcs.Middle posts: 460x504 2pcs.Fronts: 473x352 2pcs.Holes for furniture hinges and for handles. Back wall:444x1388.Shelves:336x494.Table top LDFP 22mm.Bottom and top covered with plastic.
