Low-Voltage PVC Insulated Cables KMPVEVng(A)-LS for Safe Electrical Applications

Marine Shipboard Cables

Manufacturer: Podolsk Cable OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

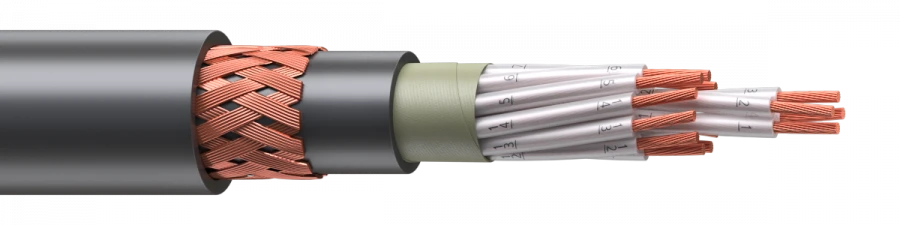

Cables small-sized copper conductors, with polyethylene insulation and with sheaths made of polyvinylchloride plasticate of reduced fire hazard, including with a screen on the insulation, including in a common screen on the sheath, including with a common screen under the sheath, designed for the transmission and distribution of electrical energy and electrical signals in stationary installations for rated alternating voltage of 500 and 1000 V frequency 50 Hz or at a constant voltage of 750 and 1500 V, respectively.
Service life is not less than 30 years at operation in the temperature range from minus 50 to +50°C..

Specifications

Core material

Copper stranded

Insulation material

polyethylene

Twisting

insulated conductors are twisted

Separation layer

mica tape wrapping

Outer shell

PVC plasticate of reduced fire hazard;

General screen

braid of copper or tinned copper wires

Protective sheath

PVC plasticate of reduced fire hazard

Climatic version

UHL and T, placement categories 1-5 according to GOST 15150

Application

Cables are designed for operation in cable constructions and premises, including for facilities of nuclear power use in AC systems of classes 3 and 4 according to NP-001 classification.

Fire safety class

according to GOST 31565: P1b.8.2.2.2.2.

Section

0.35...2.5 mm²

Number of cores

2...52

Rated AC voltage

1000 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
