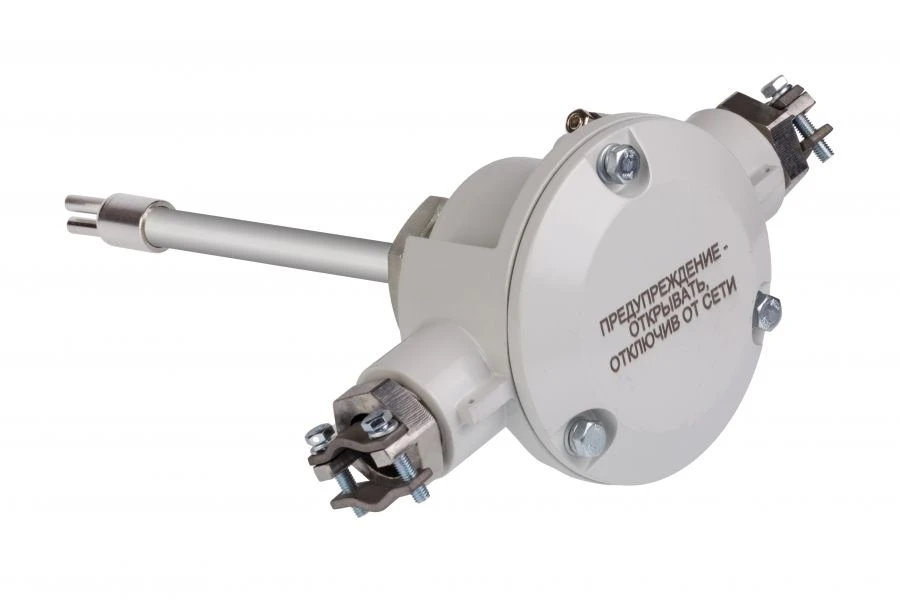

Maximum Explosion-Proof Thermal Fire Detectors IP103-1V for Industrial Fire Safety

Fire Alarm Detectors

Manufacturer: CJSC NPK "ETALON"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The detectors IP 103-1B are designed for use in chemical, oil and gas and other industries, on marine vessels to give notice of fire when the temperature of the controlled environment above the permissible. Detectors ?? 103-1?

have one or two thermorelays with normally closed contacts. The detectors are designed for use in hazardous areas of 1, 2 classes, as well as in hazardous areas of all classes in accordance with the "Rules for Electrical Installations" (PUE) ch. 7.3 and other regulatory and technical requirements.

7.3 and other normative and technical documents defining the use of electrical equipment in explosive environments. Detectors with a stainless steel head can be manufactured under the technical supervision of the Russian Maritime Register of Shipping. Such detectors are labelled with the additional letter code MR.

Specifications

Number of thermostats (sensing elements) for classes A3, B and C

1...2 pcs

Number of thermostats (sensing elements) for classes D, E, F

1 pcs

Voltage of switched electric current (DC or AC)

6...36 V

Value of switched electric current (DC or AC)

0.05...0.2 A

Transient electrical resistance of detector contacts, not more

1.5 ohm

Operating temperature for classes A3, B and C

-60...100 °C

Operating temperature for classes D, E, F

-60...150 °C

Explosion protection marking (classes A3, B, C)

1Ex db IIB T6 Gb

Explosion protection marking (class D)

1Ex db IIB T5 Gb

Explosion protection marking (class E)

1Ex db IIB T4 Gb

Explosion protection marking (class F)

1Ex db IIB T3 Gb

Degree of protection against dust and water

IP66

Weight, not more

2.6 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
