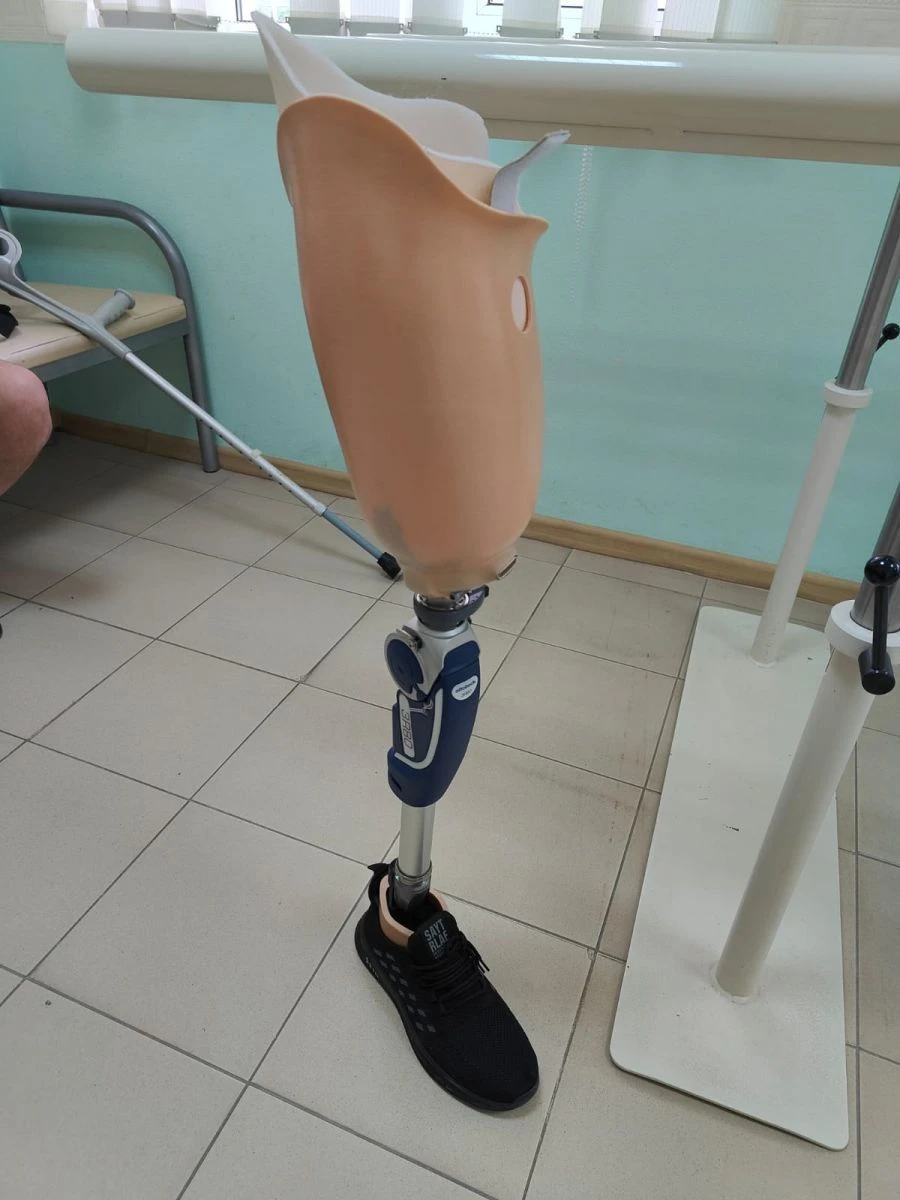

Modular Hip Prosthesis with Microprocessor Control for Enhanced Mobility

Modular hip prosthesis with microprocessor control, must have a bearing receiving sleeve made of carbon-reinforced acrylic resin-based laminated composite material for short residual limb prosthetics, individually made from an impression, with a polymer cover. The uniaxial hydraulic knee module shall have fully electronic control of the support phase. The knee module shall have at least 4 basic activity modes and allow selection of the required mode depending on the current needs of the user.

The module shall have at least 5 basic functions that are always active regardless of the selected mode to maximise safety when using the prosthesis. The carbon fibre foot shall be of medium energy efficiency. The semi-finished products shall be titanium, for loads up to 125kg.

Cosmetic cladding should be modular, removable, plastic with a protective function.
