Available for Import

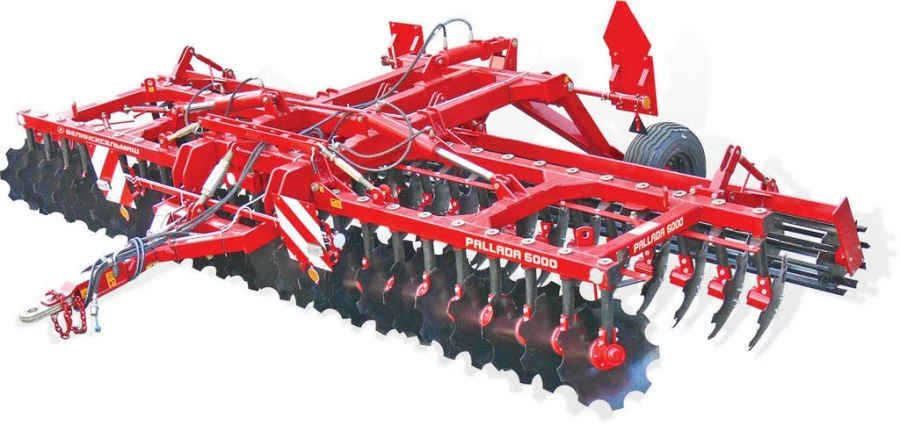

Modular Trailed Disc Harrow BDM-6000-05 for Efficient Soil Preparation
Manufacturer:
BELINSKSELMASH OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The disc harrow is designed for resource-saving pre-sowing tillage for sowing grain, industrial and forage crops, weed killing and shredding of crop residues after harvesting crops, as well as for shredding, levelling and compacting the soil after discing.
Specifications
Type of product according to PP RF 616
Disc harrows
Capacity per hour
4.3...6
Operating speed
8...12
Length
4550...5200 mm
Width
6000...6150 mm
Height
1280...1350 mm
Harrow type
Trailed disc harrow
Number of implement rows
2 pcs
Working width
6 m
Weight
3200...3900 kg
Distance between rows
950 mm
Unit type
Trailed
Number of cutting units
46 pcs
Diameter of working elements
560 mm
Distance between blades
250 mm
Overall dimensions in working position
4900x6110x1295 mm
Overall dimensions in transport position
4555x2880x3650 mm
Structural weight
3850 kg
Pulling power class (not less than)
220 hp
Depth of treatment
80 mm to 150 mm
Angle of attack of the disks
0° - 30°
Number of rows
2 pcs
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
