MTOK-N Joint for Self-supporting Optical Cables Available for Import

MTOK-N Joint for Self-supporting Optical Cables - Reliable Solution for Secure Installations

Cable Accessories
Manufacturer: SSD OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

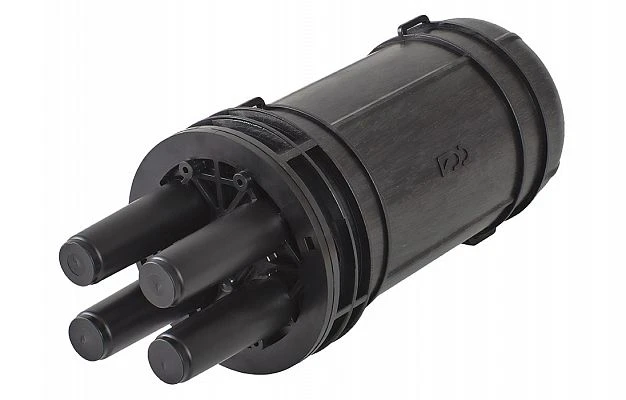

Designed for the installation of suspended self-supporting OC, optical cables with a remote power element type "8", as well as cables with armour made of steel corrugated tape.The MTOC-N coupling is the smallest coupling of the MTOC series. Minimisation of the coupling dimensions is achieved due to the use of a special internal tray (bracket) on which there are two removable spacers for 18 welded joints each and 4 CSE clamps. The stock of optical fibres is also located in the tray organizers. The method of sealing the housing with the headband is mechanical.

Specifications

Type or grade of material
Armlen
Equipment
Casing (headband, casing, gasket),Spacer L18-4525,Sleeves KDZS 4525,Tube TUT 28/6 for round bushings OK,Set of markers and ties,Silica gel
Designation
MTOC-N
Type
??????????????
Profile
Cylindrical
Surface protection coating
Bayonet, TUT
Diameter
111 mm
Resistance to mechanical influences
Single impact not less than 10 Joules
Length
26.9 cm
Weight
0.4 kg
Operating temperature
-60...70 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
