Available for Import

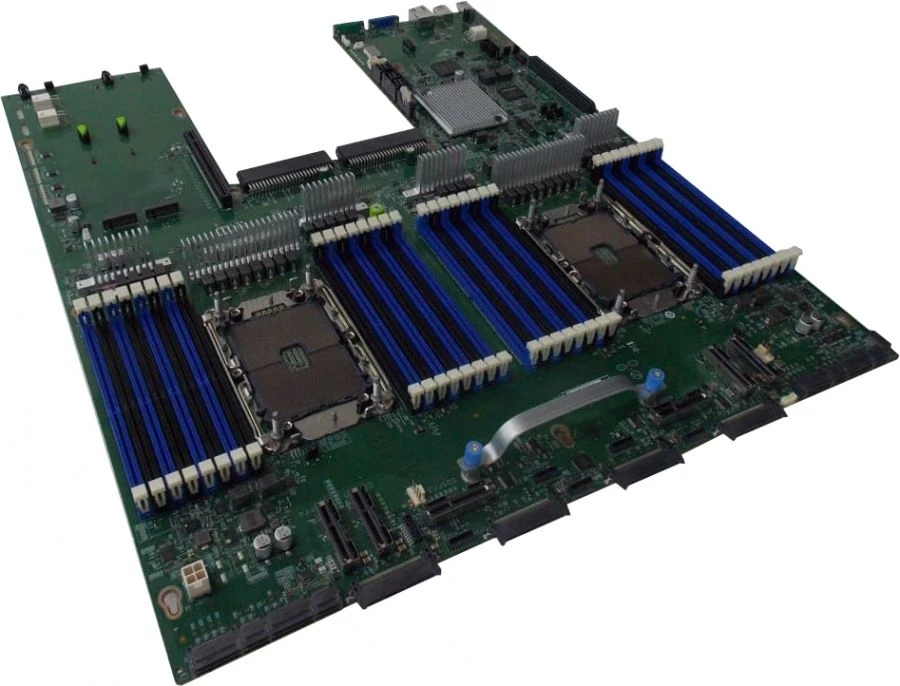

Multi-layer Server Motherboard "Butterfly 2" for Reliable Server Operations

Data Processing Devices

Manufacturer: DELTA SOLUTIONS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Multilayer printed circuit board, which is the basis of a server device, acts as a link between the components of the server and provides joint operation of: microprocessors, RAM, and other components of the server device.

Specifications

DC/AC mains power supply

DC 12.2 V ± 0.4 V from busbar Rack / connectors for 2 220 V AC power supplies

Testing interface

DB9 COM

Number of USB connectors on the front panel

USB 3.0 - 2 pcs.

Video interface

VGA (mini VGA *)

Platform management interface

IPMI via LAN RJ45

PCIe Gen4 connector type

2x Riser (1U x16) 2x OCP3.0 (x16) (SFF-TA-1002) 4C+ 6x EDSFF (x8) (SFF-TA-1009) 4x U.2 SFF (x4) (SFF-8639)

Number of PCIe connectors

2x M.2 PCIe Gen3x2 80 mm/110 mm sizes

Number of SATA connectors

12x SATA 6Gb/s via mini-SAS HD

Maximum RAM capacity

Up to 8192GB (using 32 256GB RAM modules)

Type of RAM

RDIMM/LRDIMM

Length

437 mm

Width

508 mm

Net weight

3 kg

Number of DIMM slots per memory channel

Power supply capacity

2000 W

RAM bus frequency

3200/2933 MHz

Thermal Design Power (TDP) of the microprocessor

up to 270 W (each)

Chipset

Lewisburg-R PCH (C621A)

Interface connection of microprocessors

Intel® Ultra Path Interconnect (UPI) with operating speeds up to 11.2GT/s (3 UPIs per CPU)

Microprocessor family

Intel® Ice Lake (ICX-SP) XCC

Microprocessor (CPU) connector

Two P 4 sockets, LGA 4189

Number of DIMM slots on the board

32 pcs

Number of RAM channels per microprocessor

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
