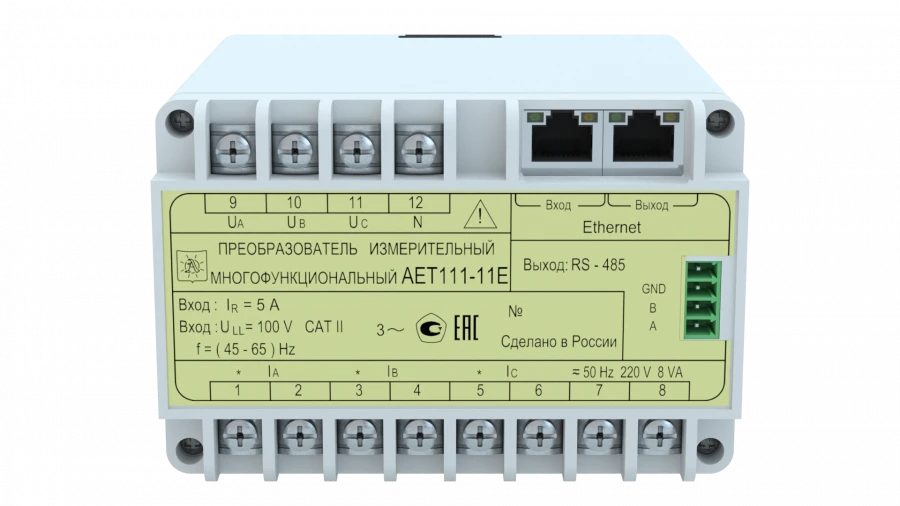

Multifunction Measurement Converter AET100 for Accurate Measurement of Electrical Parameters

Digital Signal Converters

Manufacturer:ALEKTO-ELECTRONICS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Multifunctional measuring transducer AET300

Description

The converter is designed to measure parameters of three-wire and four-wire electrical networks of three-phase current, converting them into coded signals and transmission of measurement results to the upper level of the automated control system. control system. Information transmission is carried out via two independent interfaces: - one interface RS-485; - the second interface - RS-485 or IEEE 802.3 (Ethernet).

Specifications

Housing material

Plastic

Explosion protection

Not intended for use in explosive and aggressive environments

Ambient temperature range

-40...55 °C

Type of digital protocol

MODBUS-RTU, MODBUS-ASCII, IEC 60870-5-101, "ExtDev", MODBUS-TCP/IP, IEC 60870-5-104

Mounting of the measuring transducer (MT)

The back cover design allows for the installation of a retainer for mounting on the T-rail
