Available for Import

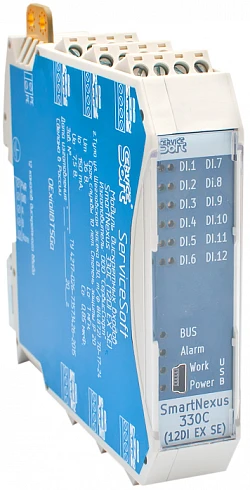

Multifunctional Industrial Controller SmartNexus 330C for Data Collection and Processing

Telecommunication Devices

Manufacturer: SERVISSoft LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Multifunctional industrial controller SmartNexus 330C is designed to collect data from electrical sensors of remote technological objects with their subsequent processing, storage and transmission of data to the main (head) module SmartNexus 110D. The controller provides formation and transmission of alarm messages in case of process parameter values exceeding the set limits and allows monitoring of emergency situations. The controller allows flexible setting of parameters of collection, storage and transmission of measured values, as well as selection of standard and specialised data exchange protocols.

The controller performs automatic archiving of measured data available after a power failure of the controller. Explosion protection level "Explosion-proof" for explosive mixtures of gases of category IIB, meets the requirements of GOST 31610.0 (IEC 60079-0), GOST 31610.11 (IEC 60079-11).

Specifications

Controller power input

«ib»

Output control channels

«ia»

Other input channels

«ia»

Input measurement channels

«ia»

Hardware supported protocols

MODBUS

Number of USB ports

1, pcs.

Discrete input/output to generate an "Alarm" signal

1, pcs.

Number of digital inputs (dry contact type)

12, pc.

Limits of permissible absolute error of measurement of the number of pulses (for each thousand pulses)

1, imp.

Number of input counting channels (digital inputs)

12, pc.

Current consumption in power saving mode,max.

15, µA

Installation method

DIN rail

Degree of dust and moisture protection

IP20

Weight, not more

150, ?.

Maximum allowable DC supply voltage range (Upit.)

4,5 - 30, ?

Overall dimensions

115 x 115 x 30, mm.

Climatic version

Maximum input voltage, Ui

30, ?

Maximum input current, Ii

2, ?

Maximum input power, ?i

7.5, W

Maximum internal inductance, Li

47, µHn

Maximum internal capacity, Ci

0.5, µF

Consumption current in normal mode

25, mA

Number of RS-485 interface ports

1, pcs.

Data communication interfaces (RS-485)

«ia»

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
