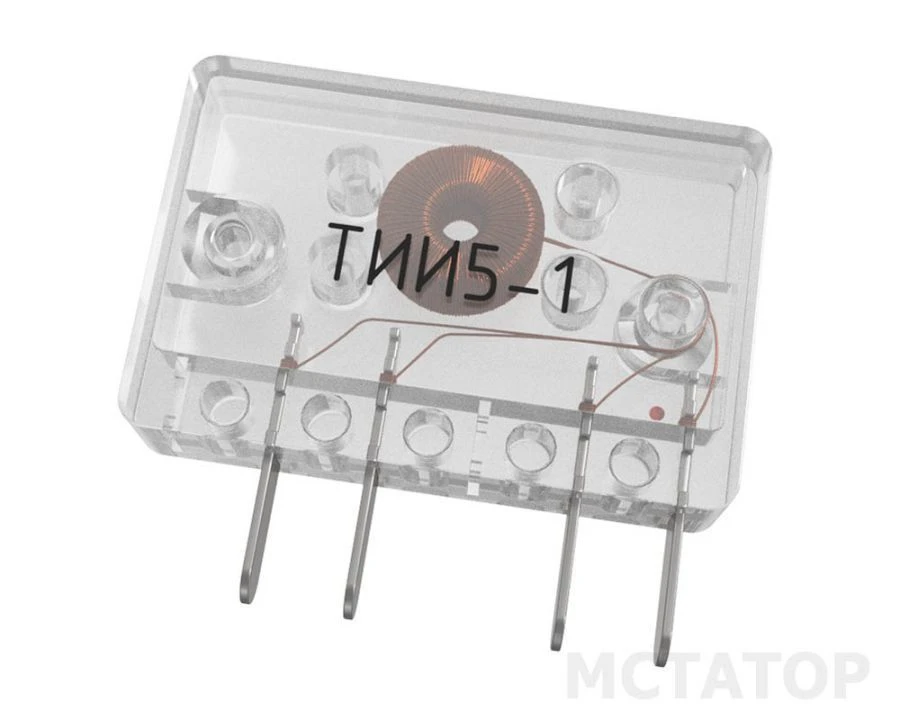

Open Type Impulse Transformers TII5 for Gas Discharge Indicator Panel Control

Electric Transformers

Manufacturer: PJSC "MSTATOR"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Transformers pulse type TII5 of the open version are designed to work in control circuits gas-discharge indicator panel (GIP) to display alphanumeric and graphic information and in other microelectronic equipment with operating voltage between windings up to 250 V, maximum input voltage up to 24 V and the product of pulse duration on the input pulse voltage of 12.5, 25.0 and 50.0 ?s?V. Quality category "VP" and "OS".

Specifications

Capacitance between primary and secondary windings, not more than

50;70 ? 20(×10^-12)

Maximum product of pulse duration by input pulse voltage

12.5;25.0 ? 50.0(×10^-6)

Electrical insulation strength: DC voltage

1000 V

Insulation resistance, not less

1000 (×10^6) ohm

Magnetizing current, not more

50 (×10^-3) A

Transformation ratio, max.

Number of windings of each transformer

2 pcs

Scattering inductance, Gn

2;3 ? 30(×10^-6)

Primary winding inductance, not less than

0.22;0.9 ? 0.5(×10^-3)
