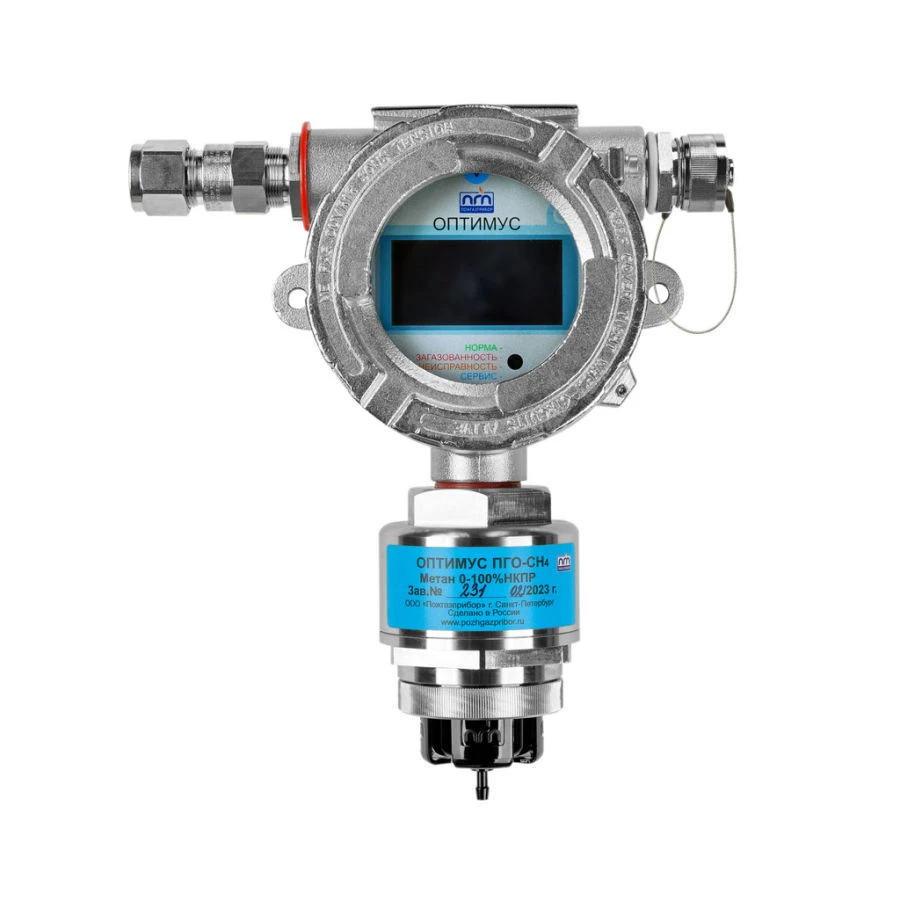

OPTIMUS Gas Analyzer for Continuous Measurement of Flammable and Toxic Gases

Gas and Smoke Analysers

Manufacturer: POZHGAZPRIBOR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Gas analysers OPTIMUS are designed for automatic continuous measurement of pre-explosion concentrations of combustible gases and vapours, volume fraction of toxic gases, carbon dioxide, hydrogen and oxygen in the ambient atmosphere and transmission of the received information to external devices in analogue and digital form. The devices are used for control of ambient atmosphere, working zone atmosphere, environmental monitoring, sound signals, and industrial safety of facilities including explosive and fire hazardous zones (explosion and fire hazard class - [B-1a / B-1g / P-1] according to PUE, zone classes 1, 2) of premises and outdoor installations. Measurement of vapours of oil products (petrol, paraffin, diesel fuel, etc.) For additional signalling an optional sounder is used.

Specifications

Weight

2.5...5 kg

Equipment

Passport, operation manual, verification procedure, test software on CD, magnetic key, set of accessories (Ex cable gland, Ex plug, calibration chamber)

Housing material

Aluminum alloy, stainless steel

Power supply voltage

24 V (18 to 32 V)

Explosion protection marking

1Ex db [ia Ga] IIC T4 Gb X (OPTIMUS IR), 1Ex db [ia Ga] IIC T6 Gb X (OPTIMUS ECH)

List of gases to be determined

Methane [CH4], propane [C3H8], methanol [CH3OH], carbon dioxide [CO2], carbon monoxide [CO], hydrogen sulfide [H2S], hexane [C6H14], ethane [C2H6], benzene [C6H6], petroleum vapours, oxygen [O2], hydrogen [H2], ammonia [NH3], methylmercaptan [CH3SH], ethyl

Output signals

4-20mA/HART, RS-485 Modbus RTU, dry contact relay

Indication

Indication: 4-colour LED, OLED display with current concentration value.

Additionally

Optics heating; Optical sensor contamination control; Self-diagnostics; Self-diagnostics

Sensor type

Stationary, remote

Number of inlets

3 or 5

Technical features

Optics heating; Optical sensor contamination control; Self-diagnostics; Self-diagnostics

Response time

0.5 sec

Uncertainty

+- 3% NCPR

Inspection interval

ECH sensor 1 year

Operating temperature range

IR sensor -60 to +90C

Degree of enclosure protection

IP66/67

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
